10142708-04200LF
ActiveAmphenol ICC (FCI)

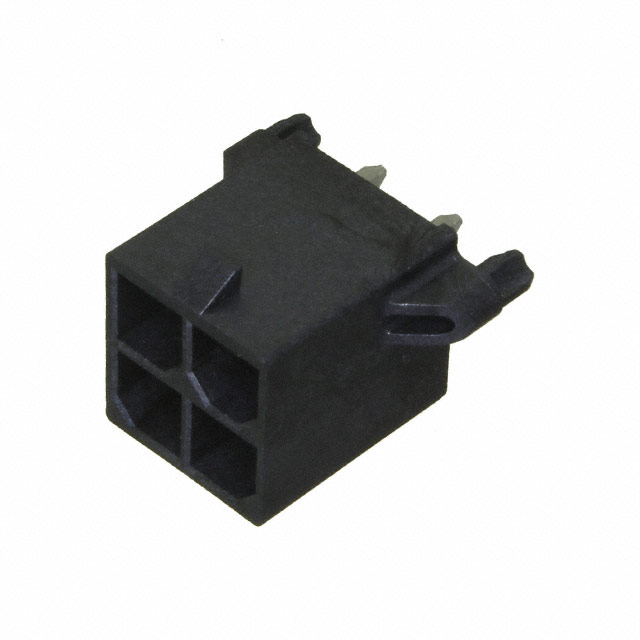

CONN HEADER VERT 4POS 5.7MM
Deep-Dive with AI
Search across all available documentation for this part.
10142708-04200LF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 4POS 5.7MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10142708-04200LF |
|---|---|
| Applications | Telecommunications, General Purpose, Military, Medical |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Post | 3.73 mm |
| Contact Length - Post | 0.147 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Glow Wire Compliant, Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.583 in |
| Insulation Height | 14.8 mm |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.224 in |
| Pitch - Mating | 5.7 mm |
| Row Spacing - Mating | 0.224 in |
| Row Spacing - Mating | 5.7 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
10142708 Series
| Part | Connector Type | Mounting Type | Number of Positions Loaded | Insulation Height | Insulation Height | Insulation Color | Shrouding | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Contact Shape | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Contact Finish - Post | Number of Rows | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Applications | Number of Positions | Features | Fastening Type | Style | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Current Rating (Amps) | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Header | Through Hole | All | 0.583 in | 14.8 mm | Black | Shrouded - 4 Wall | Copper Alloy | 2.54 µm | 100 µin | Liquid Crystal Polymer (LCP) Halogen Free | Square | 0.224 in | 5.7 mm | 0.224 in | 5.7 mm | UL94 V-0 | Tin | 2 | Solder | -40 °C | 105 ░C | Male Pin | General Purpose Medical Military Telecommunications | 2 | Board Guide Glow Wire Compliant | Locking Ramp | Board to Cable/Wire | 3.73 mm | 0.147 in | 2.54 çm | 100 çin | 600 VAC | ||
Amphenol ICC (FCI) | Header | Through Hole | All | 0.583 in | 14.8 mm | Black | Shrouded - 4 Wall | Copper Alloy | 2.54 µm | 100 µin | Liquid Crystal Polymer (LCP) Halogen Free | Square | 0.224 in | 5.7 mm | 0.224 in | 5.7 mm | UL94 V-0 | Tin | 2 | Solder | -40 °C | 120 °C | Male Pin | 8 | Board Guide Glow Wire Compliant Pick and Place | Locking Ramp | Board to Cable/Wire | 3.73 mm | 0.147 in | 0.076 µm | 3 µin | 600 VAC | Varies by Wire Gauge | Gold | |
Amphenol ICC (FCI) | Header | Through Hole | All | 0.583 in | 14.8 mm | Black | Shrouded - 4 Wall | Copper Alloy | 2.54 µm | 100 µin | Liquid Crystal Polymer (LCP) Halogen Free | Square | 0.224 in | 5.7 mm | 0.224 in | 5.7 mm | UL94 V-0 | Tin | 2 | Solder | -40 °C | 120 °C | Male Pin | 2 | Board Guide Glow Wire Compliant | Locking Ramp | Board to Cable/Wire | 3.73 mm | 0.147 in | 0.076 µm | 3 µin | 600 VAC | Varies by Wire Gauge | Gold | |
Amphenol ICC (FCI) | Header | Through Hole | All | 0.583 in | 14.8 mm | Black | Shrouded - 4 Wall | Copper Alloy | 2.54 µm | 100 µin | Liquid Crystal Polymer (LCP) Halogen Free | Square | 0.224 in | 5.7 mm | 0.224 in | 5.7 mm | UL94 V-0 | Tin | 2 | Solder | -40 °C | 105 ░C | Male Pin | General Purpose Medical Military Telecommunications | 6 | Board Guide Glow Wire Compliant | Locking Ramp | Board to Cable/Wire | 3.73 mm | 0.147 in | 2.54 çm | 100 çin | 600 VAC | ||
Amphenol ICC (FCI) | Header | Through Hole | All | 0.583 in | 14.8 mm | Black | Shrouded - 4 Wall | Copper Alloy | 2.54 µm | 100 µin | Liquid Crystal Polymer (LCP) Halogen Free | Square | 0.224 in | 5.7 mm | 0.224 in | 5.7 mm | UL94 V-0 | Tin | 2 | Solder | -40 °C | 105 ░C | Male Pin | General Purpose Medical Military Telecommunications | 4 | Board Guide Glow Wire Compliant | Locking Ramp | Board to Cable/Wire | 3.73 mm | 0.147 in | 2.54 çm | 100 çin | 600 VAC | ||
Amphenol ICC (FCI) | Header | Through Hole | All | 0.583 in | 14.8 mm | Black | Shrouded - 4 Wall | Copper Alloy | 2.54 µm | 100 µin | Liquid Crystal Polymer (LCP) Halogen Free | Square | 0.224 in | 5.7 mm | 0.224 in | 5.7 mm | UL94 V-0 | Tin | 2 | Solder | -40 °C | 120 °C | Male Pin | 4 | Board Guide Glow Wire Compliant | Locking Ramp | Board to Cable/Wire | 3.73 mm | 0.147 in | 0.076 µm | 3 µin | 600 VAC | Varies by Wire Gauge | Gold | |
Amphenol ICC (FCI) | Header | Through Hole | All | 0.583 in | 14.8 mm | Black | Shrouded - 4 Wall | Copper Alloy | 2.54 µm | 100 µin | Liquid Crystal Polymer (LCP) Halogen Free | Square | 0.224 in | 5.7 mm | 0.224 in | 5.7 mm | UL94 V-0 | Tin | 2 | Solder | -40 °C | 120 °C | Male Pin | 4 | Board Guide Glow Wire Compliant Pick and Place | Locking Ramp | Board to Cable/Wire | 3.73 mm | 0.147 in | 0.076 µm | 3 µin | 600 VAC | Varies by Wire Gauge | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.80 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.23 | |||
| 40 | $ 1.17 | |||
| 80 | $ 1.08 | |||
| 260 | $ 0.95 | |||
| 520 | $ 0.88 | |||
| 1040 | $ 0.82 | |||
| 2600 | $ 0.75 | |||
Description
General part information
10142708 Series
Connector Header Through Hole 4 position 0.224" (5.70mm)
