487576-4

Active

TE Connectivity Raychem Cable Protection

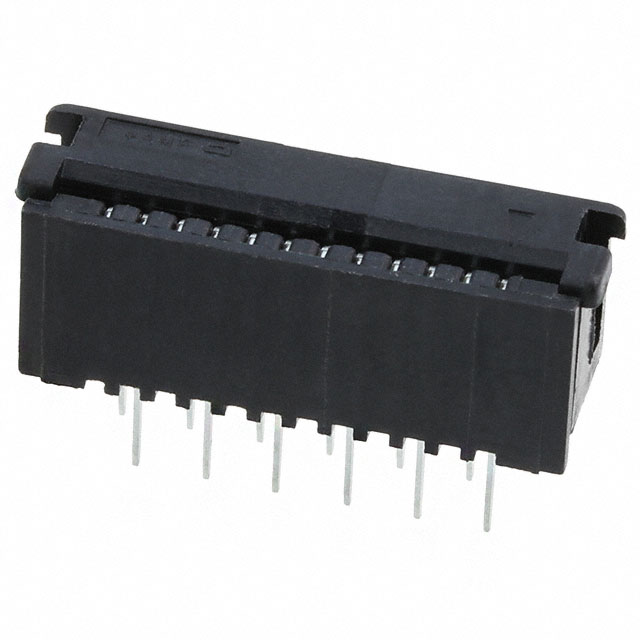

CONN FFC VERT 12POS 1.27MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

487576-4

Active

TE Connectivity Raychem Cable Protection

CONN FFC VERT 12POS 1.27MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	487576-4

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Finish Thickness	150 µin
Contact Finish Thickness	150 Áin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [Max]	0.31 mm
FFC, FCB Thickness [Min]	0.1 mm
Flat Flex Type	FFC
Height Above Board [z]	7.87 mm
Height Above Board [z]	0.31 in
Housing Color	Black
Housing Material	Thermoplastic
Locking Feature	Slide Lock
Mounting Type	Through Hole
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder
Voltage Rating	150 VDC

ZIF LINE Series

Part	Actuator Color	Housing Color	Locking Feature	Flat Flex Type	Actuator Material	Contact Material	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Connector/Contact Type	FFC, FCB Thickness [Max]	FFC, FCB Thickness [Min]	Cable End Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Termination	FFC, FCB Thickness
TE Connectivity Raychem Cable Protection 487576-1	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	9	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 4-487576-9	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	8	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 487925-2	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic			Tin		150 µin	150 Áin	0.1 in	2.54 mm	14	Contacts Vertical - 1 Sided			Straight	Through Hole	7.87 mm	0.31 in	Solder	0.12 mm
TE Connectivity Raychem Cable Protection 487576-4	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	12	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 4-487576-2	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	50	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 487576-9	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm		Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 487576-2	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	10	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 487925-9	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic			Tin		150 µin	150 Áin	0.1 in	2.54 mm	12	Contacts Vertical - 1 Sided			Straight	Through Hole	7.87 mm	0.31 in	Solder	0.12 mm
TE Connectivity Raychem Cable Protection 1-487925-3	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic			Tin		150 µin	150 Áin	0.1 in	2.54 mm	18	Contacts Vertical - 1 Sided			Straight	Through Hole	7.87 mm	0.31 in	Solder	0.12 mm
TE Connectivity Raychem Cable Protection 487925-6	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic			Tin		150 µin	150 Áin	0.1 in	2.54 mm	10	Contacts Vertical - 1 Sided			Straight	Through Hole	7.87 mm	0.31 in	Solder	0.12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.30
		24	$ 2.05
		48	$ 2.04
		72	$ 2.02
		120	$ 1.85
		264	$ 1.84
		504	$ 1.68
		1008	$ 1.50
		2520	$ 1.39

Description

General part information

ZIF LINE Series

12 Position FFC Connector Contacts, Vertical - 1 Sided 0.050" (1.27mm) Through Hole
