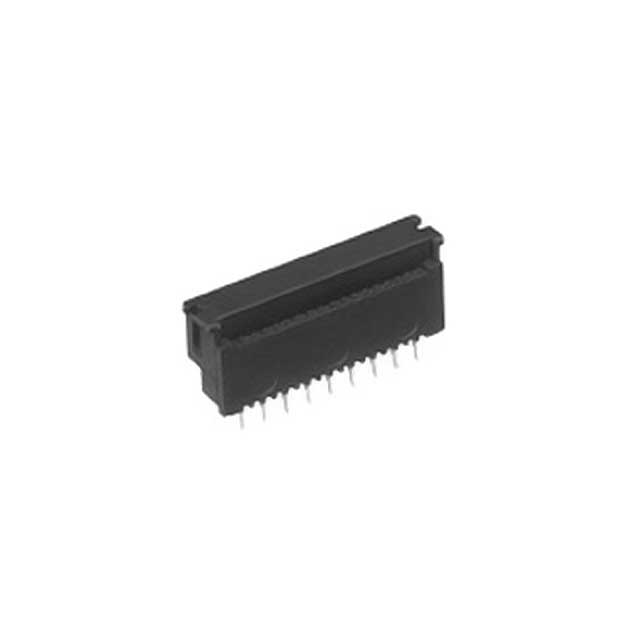

487576-1

Active

TE Connectivity Raychem Cable Protection

9 ZIF LINE 50 ASSY ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	487576-1

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Finish Thickness	150 µin
Contact Finish Thickness	150 Áin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [Max]	0.31 mm
FFC, FCB Thickness [Min]	0.1 mm
Flat Flex Type	FFC
Height Above Board [z]	7.87 mm
Height Above Board [z]	0.31 in
Housing Color	Black
Housing Material	Thermoplastic
Locking Feature	Slide Lock
Mounting Type	Through Hole
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder
Voltage Rating	150 VDC

ZIF LINE Series

Part	Actuator Color	Housing Color	Locking Feature	Flat Flex Type	Actuator Material	Contact Material	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Connector/Contact Type	FFC, FCB Thickness [Max]	FFC, FCB Thickness [Min]	Cable End Type	Mounting Type	Height Above Board [z]	Height Above Board [z]	Termination	FFC, FCB Thickness
TE Connectivity Raychem Cable Protection 487576-1	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	9	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 4-487576-9	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	8	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 487925-2	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic			Tin		150 µin	150 Áin	0.1 in	2.54 mm	14	Contacts Vertical - 1 Sided			Straight	Through Hole	7.87 mm	0.31 in	Solder	0.12 mm
TE Connectivity Raychem Cable Protection 487576-4	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	12	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 4-487576-2	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	50	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 487576-9	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm		Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 487576-2	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic	105 ░C	-55 °C	Tin	150 VDC	150 µin	150 Áin	0.05 in	1.27 mm	10	Contacts Vertical - 1 Sided	0.31 mm	0.1 mm	Straight	Through Hole	7.87 mm	0.31 in	Solder
TE Connectivity Raychem Cable Protection 487925-9	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic			Tin		150 µin	150 Áin	0.1 in	2.54 mm	12	Contacts Vertical - 1 Sided			Straight	Through Hole	7.87 mm	0.31 in	Solder	0.12 mm
TE Connectivity Raychem Cable Protection 1-487925-3	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic			Tin		150 µin	150 Áin	0.1 in	2.54 mm	18	Contacts Vertical - 1 Sided			Straight	Through Hole	7.87 mm	0.31 in	Solder	0.12 mm
TE Connectivity Raychem Cable Protection 487925-6	Black	Black	Slide Lock	FFC	Thermoplastic	Phosphor Bronze	Thermoplastic			Tin		150 µin	150 Áin	0.1 in	2.54 mm	10	Contacts Vertical - 1 Sided			Straight	Through Hole	7.87 mm	0.31 in	Solder	0.12 mm
