1092A1-28V

Active

Visual Communications Company - VCC

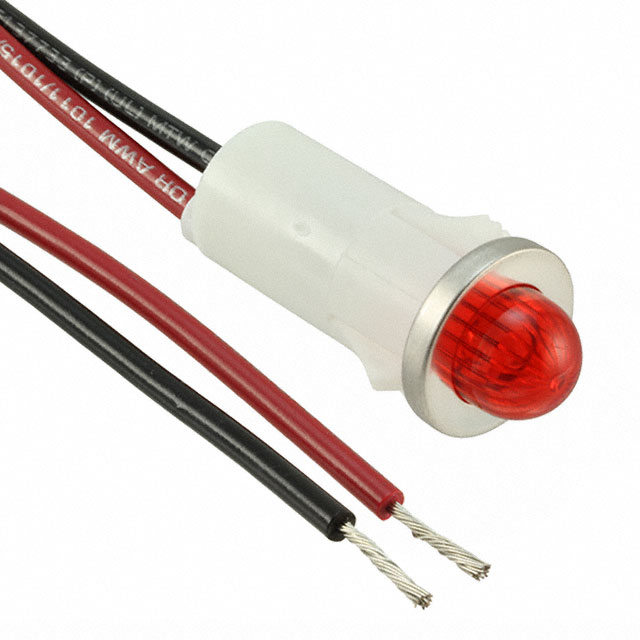

LED PANEL INDICATOR RED 28V

Deep-Dive with AI

Search across all available documentation for this part.

1092A1-28V

Active

Visual Communications Company - VCC

LED PANEL INDICATOR RED 28V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.72
		500	$ 3.13
		1000	$ 2.87
		2500	$ 2.76

Description

General part information

1092A Series

LED Panel Indicator Red Diffused 28V 25mA Wire Leads - 4.6" (116.84mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1092A1-28V	1092A Series

Current	25 mA	25 mA
Lamp Color	Red	Clear, Amber, Red, Green
Lens Color	Red	Colorless, Amber, Red, Green
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating	13000 mcd	7000 - 13000 mcd
Panel Cutout Dimensions	12.7 mm	12.7 mm
Panel Cutout Dimensions	0.5 in	0.5 in
Panel Cutout Shape	Round	Round
Ratings	DC	AC/DC, DC, AC
Termination Style	4.6 in	4.6 in
Termination Style	116.84 mm	116.84 mm
Termination Style	Wire Leads	Wire Leads - 4.8" (121.92mm), Wire Leads
Type	LED	LED
Voltage	28 V	12 - 250 V
Wavelength - Peak	-	468 nm

1092A Series

PMI RND .5" LED CLR HI-DOME 12V

Part	Lens Transparency	Panel Cutout Shape	Lens Style	Lens Color	Termination Style	Voltage	Type	Millicandela Rating	Wavelength - Peak	Lamp Color	Current	Lens Size	Lens Size	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Termination Style	Termination Style
Visual Communications Company - VCC 1092A2-12V	Clear	Round	Round with Domed Top	Colorless	Wire Leads - 4.8" (121.92mm)	12 V	LED	7000 mcd	468 nm	Clear	25 mA	T-1 3/4	5 mm	12.7 mm	0.5 in	AC/DC
Visual Communications Company - VCC 1092A2-28V	Clear	Round	Round with Domed Top	Colorless	Wire Leads - 4.8" (121.92mm)	28 V	LED	7000 mcd	468 nm	Clear	25 mA	T-1 3/4	5 mm	12.7 mm	0.5 in	AC/DC
Visual Communications Company - VCC 1092A3-28V	Diffused	Round	Round with Domed Top	Amber	Wire Leads	28 V	LED	13000 mcd		Amber	25 mA			12.7 mm	0.5 in	DC	4.6 in	116.84 mm
Visual Communications Company - VCC 1092A1-28V	Diffused	Round	Round with Domed Top	Red	Wire Leads	28 V	LED	13000 mcd		Red	25 mA			12.7 mm	0.5 in	DC	4.6 in	116.84 mm
Visual Communications Company - VCC 1092A2-125VAC	Diffused	Round	Round with Domed Top		Wire Leads - 4.8" (121.92mm)	125 V	LED	7000 mcd		Clear	25 mA			12.7 mm	0.5 in	AC
Visual Communications Company - VCC 1092A5-250VAC	Diffused	Round	Round with Domed Top	Green	Wire Leads - 4.8" (121.92mm)	250 V	LED	12000 mcd		Green	25 mA			12.7 mm	0.5 in	AC
Visual Communications Company - VCC 1092A2-250VAC	Diffused	Round	Round with Domed Top		Wire Leads - 4.8" (121.92mm)	250 V	LED	7000 mcd		Clear	25 mA			12.7 mm	0.5 in	AC
Visual Communications Company - VCC 1092A1-250VAC	Diffused	Round	Round with Domed Top	Red	Wire Leads - 4.8" (121.92mm)	250 V	LED	13000 mcd		Red	25 mA			12.7 mm	0.5 in	AC
Visual Communications Company - VCC 1092A3-12V	Diffused	Round	Round with Domed Top	Amber	Wire Leads	12 V	LED	13000 mcd		Amber	25 mA			12.7 mm	0.5 in	DC	4.6 in	116.84 mm
