1092A5-250VAC
ActiveVisual Communications Company - VCC

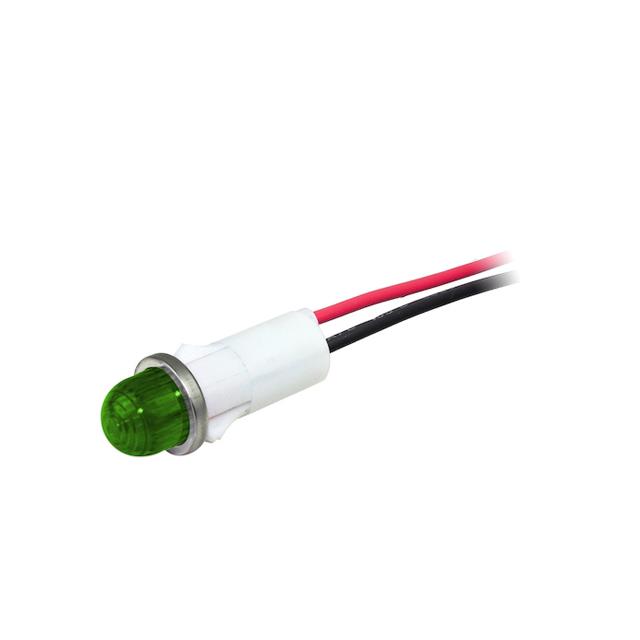

LED PMI 5MM GREEN HI DOME WIRE
Deep-Dive with AI
Search across all available documentation for this part.
1092A5-250VAC
ActiveVisual Communications Company - VCC
LED PMI 5MM GREEN HI DOME WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1092A5-250VAC | 1092A Series |
|---|---|---|
| Current | 25 mA | 25 mA |
| Lamp Color | Green | Clear, Amber, Red, Green |
| Lens Color | Green | Colorless, Amber, Red, Green |
| Lens Size | - | T-1 3/4 |
| Lens Size | - | 5 mm |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Diffused | Clear, Diffused |
| Millicandela Rating | 12000 mcd | 7000 - 13000 mcd |
| Panel Cutout Dimensions | 12.7 mm | 12.7 mm |
| Panel Cutout Dimensions | 0.5 in | 0.5 in |
| Panel Cutout Shape | Round | Round |
| Ratings | AC | AC/DC, DC, AC |
| Termination Style | Wire Leads - 4.8" (121.92mm) | Wire Leads - 4.8" (121.92mm), Wire Leads |
| Termination Style | - | 4.6 in |
| Termination Style | - | 116.84 mm |
| Type | LED | LED |
| Voltage | 250 V | 12 - 250 V |
| Wavelength - Peak | - | 468 nm |
1092A Series
PMI RND .5" LED CLR HI-DOME 12V
| Part | Lens Transparency | Panel Cutout Shape | Lens Style | Lens Color | Termination Style | Voltage | Type | Millicandela Rating | Wavelength - Peak | Lamp Color | Current | Lens Size | Lens Size | Panel Cutout Dimensions | Panel Cutout Dimensions | Ratings | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Visual Communications Company - VCC 1092A2-12V | Clear | Round | Round with Domed Top | Colorless | Wire Leads - 4.8" (121.92mm) | 12 V | LED | 7000 mcd | 468 nm | Clear | 25 mA | T-1 3/4 | 5 mm | 12.7 mm | 0.5 in | AC/DC | ||
Visual Communications Company - VCC 1092A2-28V | Clear | Round | Round with Domed Top | Colorless | Wire Leads - 4.8" (121.92mm) | 28 V | LED | 7000 mcd | 468 nm | Clear | 25 mA | T-1 3/4 | 5 mm | 12.7 mm | 0.5 in | AC/DC | ||
Visual Communications Company - VCC 1092A3-28V | Diffused | Round | Round with Domed Top | Amber | Wire Leads | 28 V | LED | 13000 mcd | Amber | 25 mA | 12.7 mm | 0.5 in | DC | 4.6 in | 116.84 mm | |||
Visual Communications Company - VCC 1092A1-28V | Diffused | Round | Round with Domed Top | Red | Wire Leads | 28 V | LED | 13000 mcd | Red | 25 mA | 12.7 mm | 0.5 in | DC | 4.6 in | 116.84 mm | |||
Visual Communications Company - VCC 1092A2-125VAC | Diffused | Round | Round with Domed Top | Wire Leads - 4.8" (121.92mm) | 125 V | LED | 7000 mcd | Clear | 25 mA | 12.7 mm | 0.5 in | AC | ||||||
Visual Communications Company - VCC 1092A5-250VAC | Diffused | Round | Round with Domed Top | Green | Wire Leads - 4.8" (121.92mm) | 250 V | LED | 12000 mcd | Green | 25 mA | 12.7 mm | 0.5 in | AC | |||||
Visual Communications Company - VCC 1092A2-250VAC | Diffused | Round | Round with Domed Top | Wire Leads - 4.8" (121.92mm) | 250 V | LED | 7000 mcd | Clear | 25 mA | 12.7 mm | 0.5 in | AC | ||||||
Visual Communications Company - VCC 1092A1-250VAC | Diffused | Round | Round with Domed Top | Red | Wire Leads - 4.8" (121.92mm) | 250 V | LED | 13000 mcd | Red | 25 mA | 12.7 mm | 0.5 in | AC | |||||
Visual Communications Company - VCC 1092A3-12V | Diffused | Round | Round with Domed Top | Amber | Wire Leads | 12 V | LED | 13000 mcd | Amber | 25 mA | 12.7 mm | 0.5 in | DC | 4.6 in | 116.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.21 | |
| 10 | $ 4.39 | |||
| 100 | $ 3.60 | |||
| 500 | $ 3.03 | |||
| 1000 | $ 2.78 | |||
| 2000 | $ 2.67 | |||
Description
General part information
1092A Series
LED Panel Indicator Green Diffused 250V 25mA Wire Leads - 4.8" (121.92mm)
