1280-6"X72YD

Active

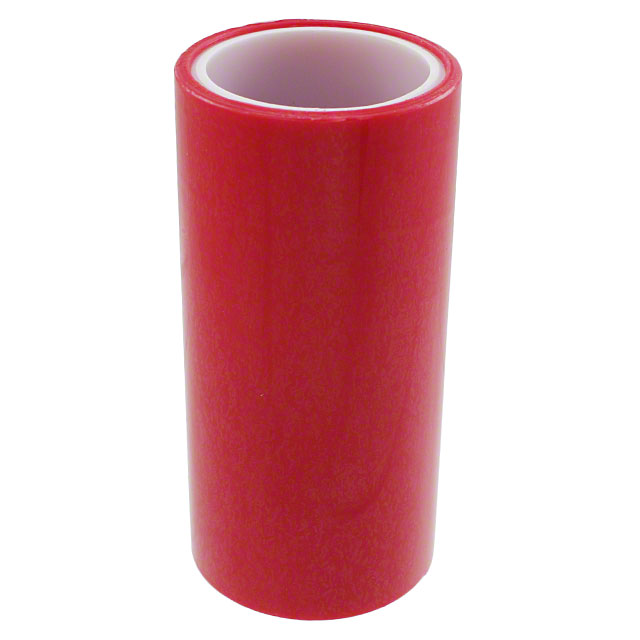

TAPE POLYESTER FILM RED 6"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher

1280-6"X72YD

Active

TAPE POLYESTER FILM RED 6"X72YDS

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1280-6"X72YD	1280 Series

Adhesive	Rubber	Rubber
Backing, Carrier	Polyester Film	Polyester Film
Color	Red	Red
Length	66 m	66 - 132 m
Length	216 ft	216 - 432 ft
Length	72 yd	72 - 144 yds
Shelf Life	18 Months	18 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C	16 - 60 °F
Tape Type	Polyester Film	Polyester Film, Circuit Plating
Thickness - Adhesive [custom]	2.7 mils	2.7 mils
Thickness - Adhesive [custom]	0.0027 "	0.0027 "
Thickness - Adhesive [custom]	0.069 mm	0.069 mm
Thickness - Backing, Carrier	0.0009 in	0.0009 in
Thickness - Backing, Carrier	0.9 mils	0.9 mils
Thickness - Backing, Carrier	0.023 mm	0.023 mm
Usage	Masking	Masking, Printed Circuit Board
Width	-	0.75 - 1.5 in
Width	-	19.05 mm
Width	-	0.75 - 38.1 in
Width	-	1 1/2
Width	-	2 "
Width	-	50.8 mm
Width	-	1 ft
Width [x]	6 in	1 - 24 in
Width [x]	152.4 mm	25.4 - 609.6 mm

1280 Series

TAPE POLY FILM RED 3/4"X144YD

Part	Width	Width	Width	Shelf Life	Usage	Tape Type	Backing, Carrier	Length	Length	Length	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Adhesive	Shelf Life Start	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [x]	Width [x]	Width	Width [y]	Width [y]
3M 1280-3/4""X144YD	0.75 in	19.05 mm	0.75 in	18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F
3M 1280-3.4"X72YD	0.75 in	19.05 mm	0.75 in	18 Months	Masking	Polyester Film	Polyester Film	72 yd	216 ft	66 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F
3M 1280-15.63IN				18 Months											Date of Manufacture					16 °C, 60 °F	27 °C, 80 °F
3M 1280-3"X144YD				18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F	76.2 mm	3 in
3M 1280-1.5""X144YD	1.5 "		38.1 mm	18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F			1 1/2
3M 1280-1"X144YD				18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F	25.4 mm	1 in
3M 1280-2""X144YD				18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F				2 "	50.8 mm
3M 1280-8IN				18 Months											Date of Manufacture					16 °C, 60 °F	27 °C, 80 °F
3M 1280-3"X72YD				18 Months	Masking	Polyester Film	Polyester Film	72 yd	216 ft	66 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F	76.2 mm	3 in
3M 1280-6"X72YD				18 Months	Masking	Polyester Film	Polyester Film	72 yd	216 ft	66 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F	152.4 mm	6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 155.66
