1280-3"X144YD

Active

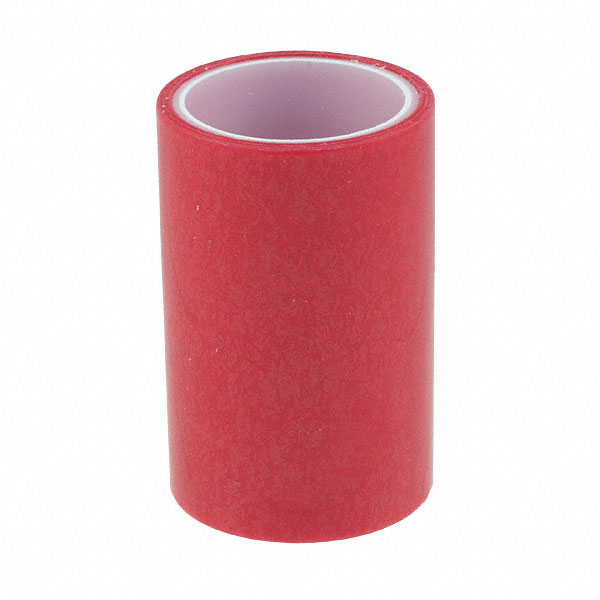

TAPE POLYESTER FILM RED 3"X144YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher

1280-3"X144YD

Active

TAPE POLYESTER FILM RED 3"X144YD

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 155.48

Description

General part information

1280 Series

Polyester Film Tape Rubber Adhesive Red 3.00" (76.20mm) X 432' (132m) 144 yds

Documents

Technical documentation and resources

Datasheet

Date Code Decipher

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1280-3"X144YD	1280 Series

Adhesive	Rubber	Rubber
Backing, Carrier	Polyester Film	Polyester Film
Color	Red	Red
Length	144 yds	72 - 144 yds
Length	432 ft	216 - 432 ft
Length	132 m	66 - 132 m
Shelf Life	18 Months	18 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C	16 - 60 °F
Tape Type	Polyester Film	Polyester Film, Circuit Plating
Thickness - Adhesive [custom]	2.7 mils	2.7 mils
Thickness - Adhesive [custom]	0.0027 "	0.0027 "
Thickness - Adhesive [custom]	0.069 mm	0.069 mm
Thickness - Backing, Carrier	0.0009 in	0.0009 in
Thickness - Backing, Carrier	0.9 mils	0.9 mils
Thickness - Backing, Carrier	0.023 mm	0.023 mm
Usage	Masking	Masking, Printed Circuit Board
Width	-	0.75 - 1.5 in
Width	-	19.05 mm
Width	-	0.75 - 38.1 in
Width	-	1 1/2
Width	-	2 "
Width	-	50.8 mm
Width	-	1 ft
Width [x]	76.2 mm	25.4 - 609.6 mm
Width [x]	3 in	1 - 24 in

1280 Series

TAPE POLY FILM RED 3/4"X144YD

Part	Width	Width	Width	Shelf Life	Usage	Tape Type	Backing, Carrier	Length	Length	Length	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Adhesive	Shelf Life Start	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [x]	Width [x]	Width	Width [y]	Width [y]
3M 1280-3/4""X144YD	0.75 in	19.05 mm	0.75 in	18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F
3M 1280-3.4"X72YD	0.75 in	19.05 mm	0.75 in	18 Months	Masking	Polyester Film	Polyester Film	72 yd	216 ft	66 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F
3M 1280-15.63IN				18 Months											Date of Manufacture					16 °C, 60 °F	27 °C, 80 °F
3M 1280-3"X144YD				18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F	76.2 mm	3 in
3M 1280-1.5""X144YD	1.5 "		38.1 mm	18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F			1 1/2
3M 1280-1"X144YD				18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F	25.4 mm	1 in
3M 1280-2""X144YD				18 Months	Masking	Polyester Film	Polyester Film	144 yds	432 ft	132 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F				2 "	50.8 mm
3M 1280-8IN				18 Months											Date of Manufacture					16 °C, 60 °F	27 °C, 80 °F
3M 1280-3"X72YD				18 Months	Masking	Polyester Film	Polyester Film	72 yd	216 ft	66 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F	76.2 mm	3 in
3M 1280-6"X72YD				18 Months	Masking	Polyester Film	Polyester Film	72 yd	216 ft	66 m	2.7 mils	0.0027 "	0.069 mm	Rubber	Date of Manufacture	0.0009 in	0.9 mils	0.023 mm	Red	16 °C, 60 °F	27 °C, 80 °F	152.4 mm	6 in
