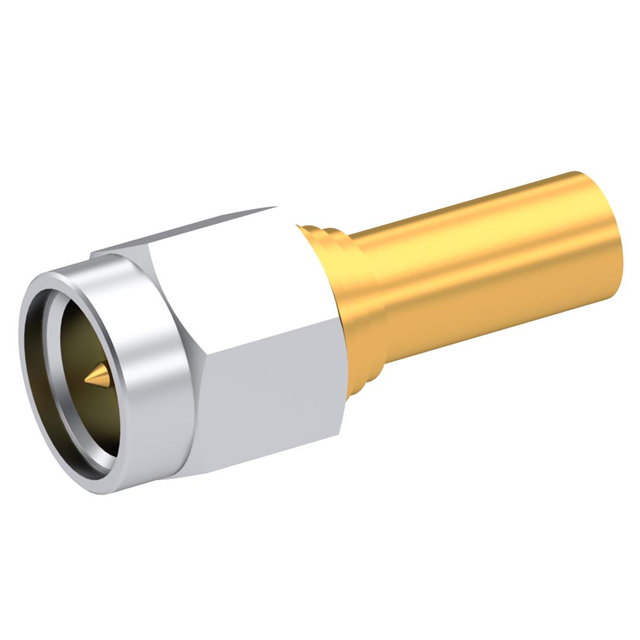

9001-1023-019

Active

Radiall USA, Inc.

SMA M STR NA CR 2.6/50D ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

9001-1023-019

Active

Radiall USA, Inc.

SMA M STR NA CR 2.6/50D ROHS COMPLIANT: YES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9001-1023-019

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-316DS, RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

9001-1023 Series

Part	Connector Style	Mating Cycles	Connector Type	Body Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Mounting Type	Shield Termination	Center Contact Plating	Center Contact Material	Impedance	Dielectric Material	Contact Termination	Cable Group	Body Finish	Number of Ports	Voltage Rating	Cable Group
Radiall USA, Inc. 9001-1023-005	SMA	500	Male Pin Plug	Stainless Steel	12.4 GHz	-65 ░C	165 °C	Gold	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	RD-178 196 Double Braid	Gold	1
Radiall USA, Inc. 9001-1023-003	SMA	500	Male Pin Plug	Stainless Steel	18 GHz	-65 ░C	165 °C	Gold	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	316 RG-174	Gold	1	250 VDC
Radiall USA, Inc. 9001-1023-001	SMA	500	Male Pin Plug	Stainless Steel	12.4 GHz	-65 ░C	165 °C	Gold	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Solder	RG-55	Gold	1	335 V	142 223
Radiall USA, Inc. 9001-1023-002	SMA	500	Male Pin Plug	Stainless Steel	18 GHz	-65 ░C	165 °C	Gold	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	RG-178	Gold	1		196
Radiall USA, Inc. 9001-1023-006	SMA	500	Male Pin Plug	Stainless Steel	18 GHz	-65 ░C	165 °C	Gold	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	RG-58	Gold	1		141
Radiall USA, Inc. 9001-1023-019	SMA	500	Male Pin Plug	Stainless Steel	18 GHz	-65 ░C	165 °C	Gold	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	RD-316 RG-316DS	Gold	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.89
		10	$ 16.54
		25	$ 15.83
		50	$ 15.32
		100	$ 14.81
		250	$ 13.99
		500	$ 13.58
Newark	Each	1	$ 18.20
		10	$ 17.19
		30	$ 16.18
		50	$ 14.58
		100	$ 12.94

Description

General part information

9001-1023 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
