9001-1023-003
ActiveRadiall USA, Inc.

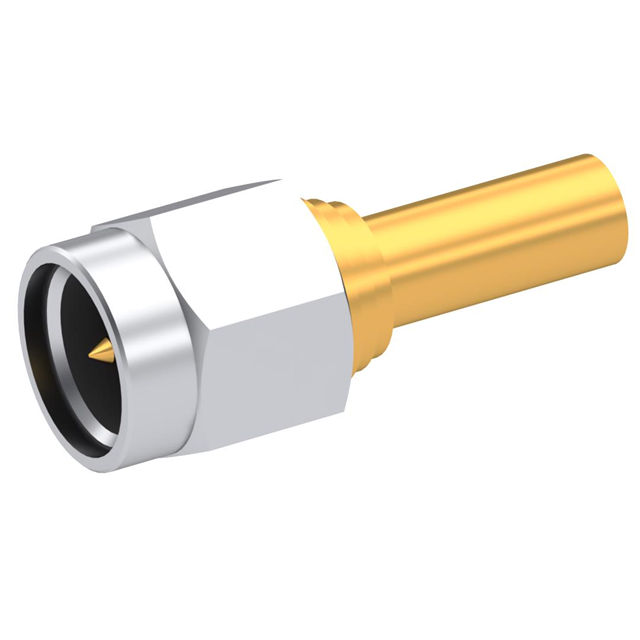

SMA M STR NA CR 2.6/50S
Deep-Dive with AI
Search across all available documentation for this part.
9001-1023-003
ActiveRadiall USA, Inc.
SMA M STR NA CR 2.6/50S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001-1023-003 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | RG-174, 316 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 250 VDC |
9001-1023 Series
| Part | Connector Style | Mating Cycles | Connector Type | Body Material | Frequency - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Mounting Type | Shield Termination | Center Contact Plating | Center Contact Material | Impedance | Dielectric Material | Contact Termination | Cable Group | Body Finish | Number of Ports | Voltage Rating | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | SMA | 500 | Male Pin Plug | Stainless Steel | 12.4 GHz | -65 ░C | 165 °C | Gold | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Crimp | RD-178 196 Double Braid | Gold | 1 | ||
Radiall USA, Inc. | SMA | 500 | Male Pin Plug | Stainless Steel | 18 GHz | -65 ░C | 165 °C | Gold | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Crimp | 316 RG-174 | Gold | 1 | 250 VDC | |
Radiall USA, Inc. | SMA | 500 | Male Pin Plug | Stainless Steel | 12.4 GHz | -65 ░C | 165 °C | Gold | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Solder | RG-55 | Gold | 1 | 335 V | 142 223 |
Radiall USA, Inc. | SMA | 500 | Male Pin Plug | Stainless Steel | 18 GHz | -65 ░C | 165 °C | Gold | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Crimp | RG-178 | Gold | 1 | 196 | |
Radiall USA, Inc. | SMA | 500 | Male Pin Plug | Stainless Steel | 18 GHz | -65 ░C | 165 °C | Gold | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Crimp | RG-58 | Gold | 1 | 141 | |
Radiall USA, Inc. | SMA | 500 | Male Pin Plug | Stainless Steel | 18 GHz | -65 ░C | 165 °C | Gold | Free Hanging (In-Line) | Crimp | Gold | Beryllium Copper | 50 Ohms | Polytetrafluoroethylene (PTFE) | Crimp | RD-316 RG-316DS | Gold | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.36 | |
| 10 | $ 16.95 | |||
| 25 | $ 16.22 | |||
| 50 | $ 15.70 | |||
| 100 | $ 15.17 | |||
| 250 | $ 14.34 | |||
| 500 | $ 13.92 | |||
Description
General part information
9001-1023 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
