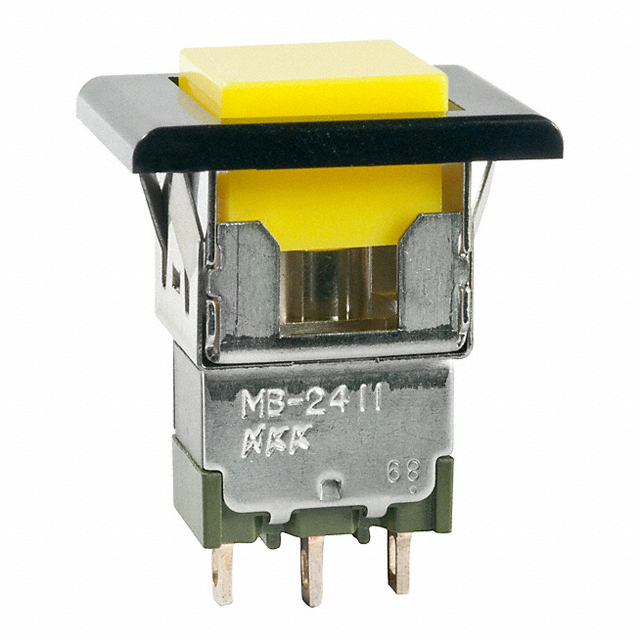

Specification	MB2411JW01-E-1A

Actuator Marking	No Marking
Actuator Type	Square, Button
Circuit	SPDT
Color - Actuator/Cap	Yellow
Current Rating	3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Length	15 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	12.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

MB2411J Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Actuator Marking	Type	Mounting Type	Current Rating	Actuator Type	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Switch Function	Features	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Color	Illumination Type	Illumination Voltage (Nominal)	Illumination Voltage (Nominal)	Voltage Rating - DC
NKK Switches MB2411JW01-H	25000	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Gray	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	Rectangular	12.5 mm	SPDT	85 °C	-30 °C
NKK Switches MB2411JW01-A-4A-EF	25000	200000 Cycles	No Marking	Illuminated Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Black	Solder Lug	On-Mom	Epoxy Sealed Terminals	18.4 mm	Rectangular	15 mm	SPDT	85 °C	-30 °C	Green Yellow	LED	2 VDC 2.1 VDC	2.0 2.1 VDC
NKK Switches MB2411JW01-F-1F	25000	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Green	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	Rectangular	12.5 mm	SPDT	85 °C	-30 °C
NKK Switches MB2411JW01	25000	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Plunger for Cap	125 V		Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	Rectangular	12.5 mm	SPDT	85 °C	-30 °C
NKK Switches MB2411JA01-A-2A-F	25000	200000 Cycles	No Marking	Illuminated Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Black	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	Rectangular	12.5 mm	SPDT	85 °C	-30 °C	Green	LED	2.1 VDC
NKK Switches MB2411JW01-A-1A	25000	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Black	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	Rectangular	12.5 mm	SPDT	85 °C	-30 °C
NKK Switches MB2411JW01-A-3A-CF	25000	200000 Cycles	No Marking	Illuminated Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Black	Solder Lug	On-Mom	Epoxy Sealed Terminals	18.4 mm	Rectangular	15 mm	SPDT	85 °C	-30 °C	Green Red	LED	2 VDC 2.25 VDC	2.0 2.25 VDC
NKK Switches MB2411JA01-G-1A	25000	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Blue	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	Rectangular	12.5 mm	SPDT	85 °C	-30 °C
NKK Switches MB2411JG01-A-1A	100000 Cycles	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	0.4 VA	Button Square	28 V	Black	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	Rectangular	12.5 mm	SPDT	85 °C	-30 °C					28 V
NKK Switches MB2411JW01-E-1A	25000	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Yellow	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	Rectangular	12.5 mm	SPDT	85 °C	-30 °C
