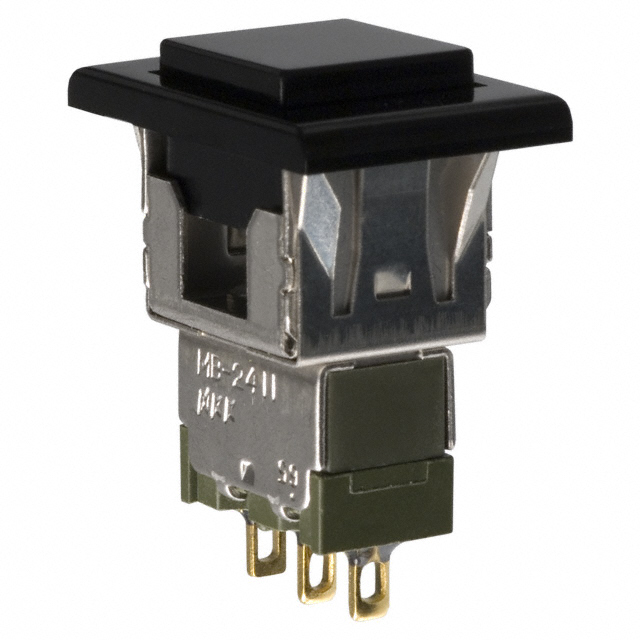

MB2411JG01-A-1A

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2411JG01-A-1A

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2411JG01-A-1A

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	15 mm
Panel Cutout Dimensions [y]	12.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2411J Series

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating - AC	Mounting Type	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Type	Actuator Type	Switch Function	Mechanical Life	Current Rating (Amps)	Termination Style	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color	Voltage Rating - DC
NKK Switches MB2411JW01-H	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Standard	Button Square	On-Mom	200000 Cycles	3 A	Solder Lug
NKK Switches MB2411JW01-F-1F	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Standard	Button Square	On-Mom	200000 Cycles	3 A	Solder Lug	Green
NKK Switches MB2411JW01	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Standard	Plunger for Cap	On-Mom	200000 Cycles	3 A	Solder Lug
NKK Switches MB2411JA01-A-2A-F	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Illuminated Standard	Button Square	On-Mom	200000 Cycles	3 A	Solder Lug	Black	2.1 VDC	Green LED
NKK Switches MB2411JW01-A-1A	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Standard	Button Square	On-Mom	200000 Cycles	3 A	Solder Lug	Black
NKK Switches MB2411JW01-A-3A-CF	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	18.4 mm	15 mm	SPDT	Illuminated Standard	Button Square	On-Mom	200000 Cycles	3 A	Solder Lug	Black	2 VDC 2.25 VDC	Green/Red LED
NKK Switches MB2411JA01-G-1A	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Standard	Button Square	On-Mom	200000 Cycles	3 A	Solder Lug	Blue
NKK Switches MB2411JG01-A-1A	100000 Cycles	-30 ░C	85 °C	Epoxy Sealed Terminals	28 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Standard	Button Square	On-Mom	200000 Cycles	0.4 VA	Solder Lug	Black			28 V
NKK Switches MB2411JW01-E-1A	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Standard	Button Square	On-Mom	200000 Cycles	3 A	Solder Lug	Yellow
NKK Switches MB2411JA01-F-1A	25000 Steps	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	Panel Mount Snap-In	No Marking	15 mm	12.5 mm	SPDT	Standard	Button Square	On-Mom	200000 Cycles	3 A	Solder Lug	Green
