627-050-222-042

Active

EDAC Inc.

VERTICAL METAL BODY D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-050-222-042

Active

EDAC Inc.

VERTICAL METAL BODY D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-050-222-042

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5

627-050 Series

Part	Shell Size, Connector Layout	Mounting Type	Connector Type	Contact Finish	Material Flammability Rating	Color	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Number of Rows	Contact Material	Contact Type	Features	Number of Positions	Flange Feature	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Termination	Contact Finish Thickness
EDAC Inc. 627-050-322-061	5	Free Hanging (In-Line)	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub	15 µin	0.38 µm	3 A	3	Brass	Signal	Grounding Indents Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C	Nickel Plated Steel
EDAC Inc. 627-050-620-242	5	Through Hole	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub	30 Áin	0.76 Ám	3 A	3	Brass	Signal	Grounding Indents Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C		Solder
EDAC Inc. 627-050-622-062	5	Free Hanging (In-Line)	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub	30 Áin	0.76 Ám	3 A	3	Brass	Signal	Grounding Indents Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C	Nickel Plated Steel
EDAC Inc. 627-050-222-042	5	Free Hanging (In-Line)	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub			3 A	3	Brass	Signal	Grounding Indents Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C	Nickel Plated Steel		Flash
EDAC Inc. 627-050-228-048	5	Through Hole	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub			3 A	3	Brass	Signal	Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C	Nickel Plated Steel	Solder	Flash
EDAC Inc. 627-050-622-068	5	Free Hanging (In-Line)	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub	30 Áin	0.76 Ám	3 A	3	Brass	Signal	Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C	Nickel Plated Steel
EDAC Inc. 627-050-622-248	5	Free Hanging (In-Line)	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub	30 Áin	0.76 Ám	3 A	3	Brass	Signal	Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C
EDAC Inc. 627-050-228-268	5	Through Hole	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub			3 A	3	Brass	Signal	Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C		Solder	Flash
EDAC Inc. 627-050-228-069	5	Through Hole	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub			3 A	3	Brass	Signal	Grounding Indents Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C	Nickel Plated Steel	Solder	Flash
EDAC Inc. 627-050-320-041	5	Through Hole	Male Pins Plug	Gold	UL94 V-0	Black	D-Sub	15 µin	0.38 µm	3 A	3	Brass	Signal	Grounding Indents Shielded	50	4-40 Board Side	Polyester Thermoplastic	85 °C	-55 °C	Nickel Plated Steel	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	50	$ 4.75
Newark	Each	50	$ 4.71
		100	$ 4.48
		250	$ 4.37
		500	$ 4.22

Description

General part information

627-050 Series

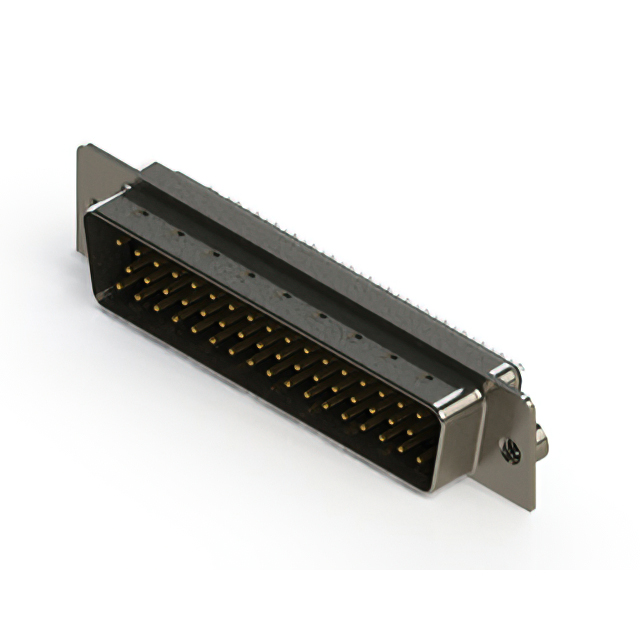

50 Position D-Sub Plug, Male Pins Connector
