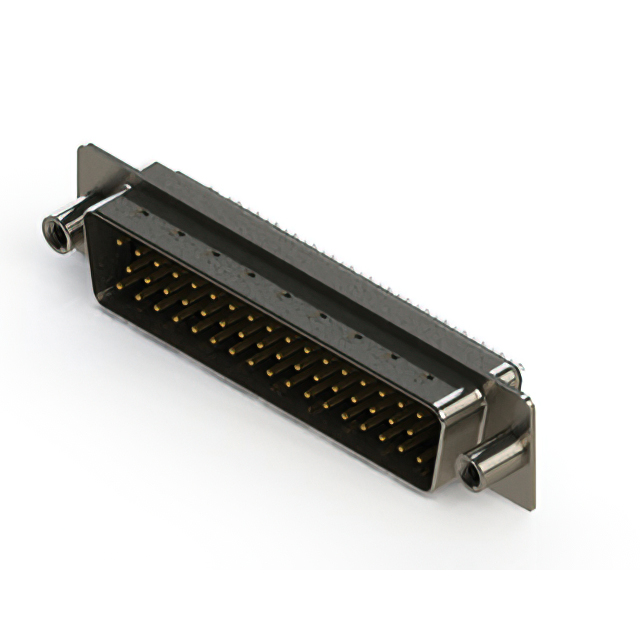

CONN D-SUB PLUG 50POS SLDR CUP

627-050-622-068

Active

EDAC Inc.

CONN D-SUB PLUG 50POS SLDR CUP

Description Specifications Series Pricing CAD Documents

Description

General part information

627-050 Series

50 Position D-Sub Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	627-050-622-068

Color	Black
Connector Layout	D, DD
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Brass
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Finish	Nickel Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	5
Termination	Solder Cup

627-050 Series

Part	Termination	Mounting Type	Material Flammability Rating	Shell Material	Finish	Features	Shell Size	Connector Layout	Contact Type	Current Rating (Per Contact)	Number of Positions	Connector Type	Number of Rows	Flange Feature	Contact Finish Thickness	Connector Style	Contact Finish	Contact Material	Color	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness (string set options)	Contact Finish Thickness	Current Rating
EDAC Inc. 627-050-322-061	Solder Cup	Free Hanging (In-Line)	UL94 V-0	Steel	Nickel Plated	Grounding Indents Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	15 µin	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-050-620-242	Solder	Through Hole	UL94 V-0	Steel	Tin Plated	Grounding Indents Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	30 µin	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-050-622-062	Solder Cup	Free Hanging (In-Line)	UL94 V-0	Steel	Nickel Plated	Grounding Indents Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	30 µin	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-050-222-042	Solder Cup	Free Hanging (In-Line)	UL94 V-0	Steel	Nickel Plated	Grounding Indents Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	0	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C	Flash	Flash
EDAC Inc. 627-050-221-042	Solder	Through Hole	UL94 V-0	Steel	Nickel Plated	Grounding Indents Shielded	5	D DD	Signal		50	Male Pins Plug	3	Board Side (4-40)	0	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C	Flash	Flash	5 A
EDAC Inc. 627-050-228-048	Solder	Through Hole	UL94 V-0	Steel	Nickel Plated	Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	0	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C	Flash	Flash
EDAC Inc. 627-050-220-043	Solder	Through Hole	UL94 V-0	Steel	Nickel Plated	Grounding Indents Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	0	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C	Flash	Flash
EDAC Inc. 627-050-622-068	Solder Cup	Free Hanging (In-Line)	UL94 V-0	Steel	Nickel Plated	Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	30 µin	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-050-620-263	Solder	Through Hole	UL94 V-0	Steel	Tin Plated	Grounding Indents Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	30 µin	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 627-050-622-248	Solder Cup	Free Hanging (In-Line)	UL94 V-0	Steel	Tin Plated	Shielded	5	D DD	Signal	3 A	50	Male Pins Plug	3	Board Side (4-40)	30 µin	D-Sub	Gold	Brass	Black	Polyester Thermoplastic	-55 °C	85 °C
