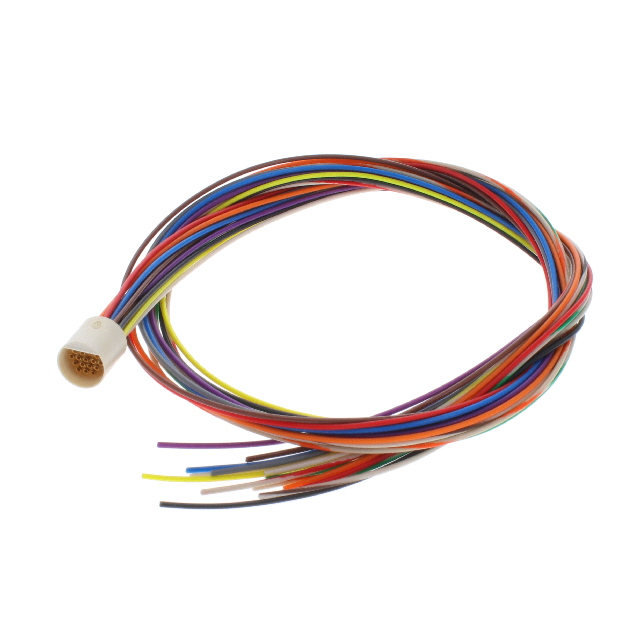

A22035-001

Active

Omnetics

CIRC CBL 16POS RCPT TO WIRE 1.5'

Search across all available documentation for this part.

Active

Omnetics

CIRC CBL 16POS RCPT TO WIRE 1.5'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.50' (457.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A22035-001	MCS-16 Series

1st Connector Gender	Female Sockets	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	16	16
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Type	Receptacle	Receptacle
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Cable Type	Individual	Individual
Color	Multiple	Natural, Multiple
Connector Type	-	Receptacle, Female Sockets
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	1.27 µm
Contact Finish Thickness - Mating	-	50 µin
Contact Material	-	Copper Alloy
Current Rating (Amps)	-	3 A
Fastening Type	-	Push-Pull
Insert Material	-	Liquid Crystal Polymer (LCP)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	-	16
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Orientation	-	Keyed
Primary Material	-	Plastic
Shell Material	-	Liquid Crystal Polymer (LCP)
Shielding	Unshielded	Unshielded

CONN RCPT FMALE 16P SOLDER CUP

Part	Shielding	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Color	Insert Material	Number of Positions	Primary Material	Orientation	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Material	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Type	Assembly Configuration	1st Connector Gender	Cable Material	1st Connector Number of Positions	Cable Type
Omnetics A22033-001	Unshielded	Copper Alloy	3 A	1.27 µm	50 µin	Push-Pull	Natural	Liquid Crystal Polymer (LCP)	16	Plastic	Keyed	Receptacle, Female Sockets	Free Hanging (In-Line)	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)
Omnetics A22035-001	Unshielded						Multiple											All	Free Hanging (In-Line)	457.2 mm	1.5 ft	Keyed	Wire Leads	Receptacle	Standard	Female Sockets	Polytetrafluoroethylene (PTFE)	16	Individual
