A22033-001

Active

Omnetics

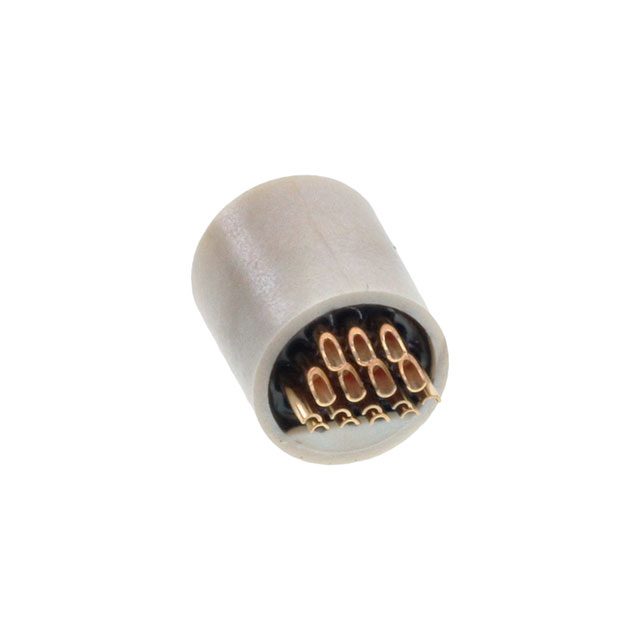

CONN RCPT FMALE 16P SOLDER CUP

Search across all available documentation for this part.

Active

Omnetics

CONN RCPT FMALE 16P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A22033-001	MCS-16 Series

1st Connector Gender	-	Female Sockets
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions	-	16
1st Connector Number of Positions Loaded	-	All
1st Connector Orientation	-	Keyed
1st Connector Type	-	Receptacle
2nd Connector Type	-	Wire Leads
Assembly Configuration	-	Standard
Cable Material	-	Polytetrafluoroethylene (PTFE)
Cable Type	-	Individual
Color	Natural	Natural, Multiple
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	16	16
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Shielding	Unshielded	Unshielded

CONN RCPT FMALE 16P SOLDER CUP

Part	Shielding	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Color	Insert Material	Number of Positions	Primary Material	Orientation	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Material	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Type	Assembly Configuration	1st Connector Gender	Cable Material	1st Connector Number of Positions	Cable Type
Omnetics A22033-001	Unshielded	Copper Alloy	3 A	1.27 µm	50 µin	Push-Pull	Natural	Liquid Crystal Polymer (LCP)	16	Plastic	Keyed	Receptacle, Female Sockets	Free Hanging (In-Line)	-55 °C	125 °C	Gold	Liquid Crystal Polymer (LCP)
Omnetics A22035-001	Unshielded						Multiple											All	Free Hanging (In-Line)	457.2 mm	1.5 ft	Keyed	Wire Leads	Receptacle	Standard	Female Sockets	Polytetrafluoroethylene (PTFE)	16	Individual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
