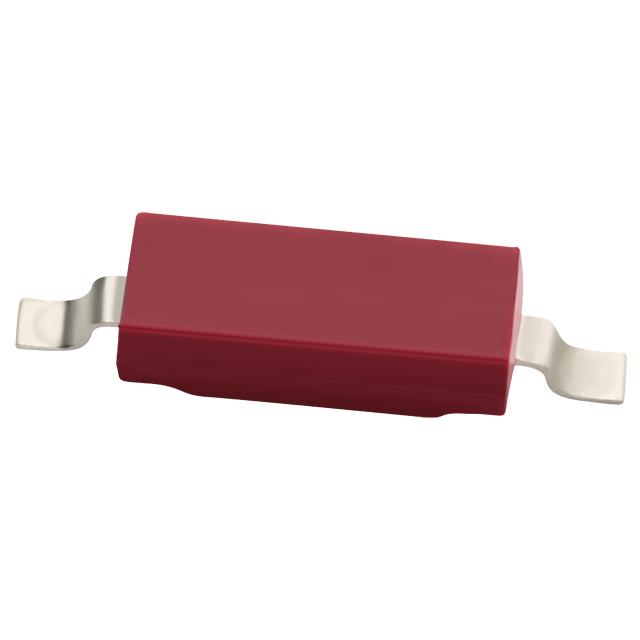

CT05-3050-G1

Active

Coto Technology

SWITCH REED SPST-NO 250MA 100V

Deep-Dive with AI

DocumentsReed Switches Technical, Appl Info Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT05-3050-G1	CT05 Series

Circuit	SPST-NO	SPST-NO
Current - Carry	500 mA	500 mA
Current - Switching	250 mA, 350 mA	250 - 350 mA
Height Above Board	0.094 "	0.094 "
Height Above Board	2.4 mm	2.4 mm
Mounting Type	Surface Mount	Surface Mount
Operate Range	-	15 - 25
Operate Range	-	35 - 50 AT
Operate Range [Max] [custom]	50	50
Operate Range [Min] [custom]	30	30
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power - Rated	5 W	5 W
Release Range	-	5 AT
Release Range	-	45 AT
Size - Body [x]	0.252 "	0.252 "
Size - Body [x]	6.4 mm	6.4 mm
Size - Body [y]	2.31 mm	2.31 mm
Size - Body [y]	0.091 "	0.091 "
Size - Body [z]	0.091 in	0.091 in
Size - Body [z]	2.31 mm	2.31 mm
Termination Style	Gull Wing	Gull Wing, J Lead
Type	Molded Body Reed	Molded Body Reed
Voltage - Switching AC	100 V	100 V
Voltage - Switching DC	140 V	140 V

CT05 Series

SWITCH REED SPST-NO 250MA 100V

Part	Current - Carry	Height Above Board	Height Above Board	Operate Range [Max] [custom]	Operate Range [Min] [custom]	Voltage - Switching DC	Current - Switching	Termination Style	Type	Power - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage - Switching AC	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [z]	Size - Body [y]	Size - Body [z]	Mounting Type	Operate Range [Min]	Operate Range [Max]	Release Range [Min]	Release Range [Max]
Coto Technology CT05-3050-G1	500 mA	0.094 "	2.4 mm	50	30	140 V	250 mA, 350 mA	Gull Wing	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount
Coto Technology CT05-2550-J1	500 mA	0.094 "	2.4 mm			140 V	250 mA, 350 mA	J Lead	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount	25	50 AT	5 AT	45 AT
Coto Technology CT05-2550-G1	500 mA	0.094 "	2.4 mm			140 V	250 mA, 350 mA	Gull Wing	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount	25	50 AT	5 AT	45 AT
Coto Technology CT05-1535-J1	500 mA	0.094 "	2.4 mm			140 V	250 mA, 350 mA	J Lead	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount	15	35 AT
Coto Technology CT05-1535-G1	500 mA	0.094 "	2.4 mm			140 V	250 mA, 350 mA	Gull Wing	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount	15	35 AT
Coto Technology CT05-3050-J1	500 mA	0.094 "	2.4 mm	50	30	140 V	250 mA, 350 mA	J Lead	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CT05 Series

Molded Body Reed Switch SPST-NO 30 ~ 50AT Operate Range 5W 250mA (AC), 350mA (DC) 100 V Surface Mount

Documents

Technical documentation and resources

Reed Switches Technical, Appl Info

Datasheet
