CT05-1535-J1

Active

Coto Technology

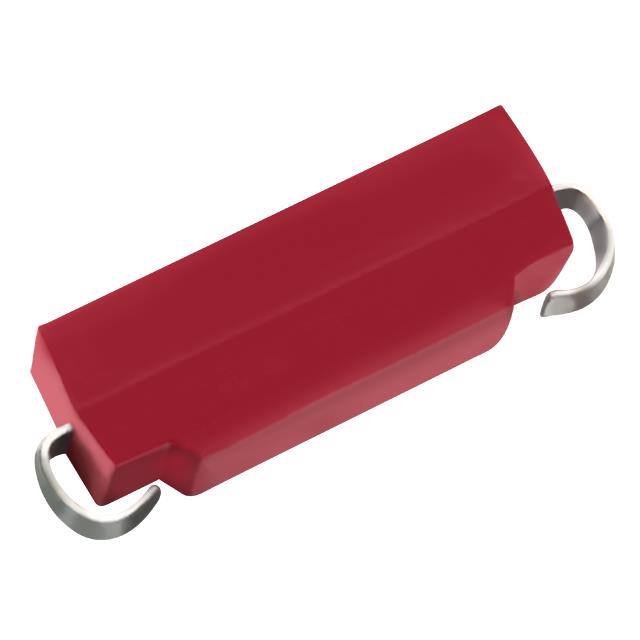

SWITCH REED SPST-NO 250MA 100V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsReed Switches Technical, Appl Info Datasheet

CT05-1535-J1

Active

Coto Technology

SWITCH REED SPST-NO 250MA 100V

Deep-Dive with AI

DocumentsReed Switches Technical, Appl Info Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CT05 Series

Molded Body Reed Switch SPST-NO 15 ~ 35AT Operate Range 5W 250mA (AC), 350mA (DC) 100 V Surface Mount

Documents

Technical documentation and resources

Reed Switches Technical, Appl Info

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT05-1535-J1	CT05 Series

Circuit	SPST-NO	SPST-NO
Current - Carry	500 mA	500 mA
Current - Switching	250 mA, 350 mA	250 - 350 mA
Height Above Board	0.094 "	0.094 "
Height Above Board	2.4 mm	2.4 mm
Mounting Type	Surface Mount	Surface Mount
Operate Range	-	50
Operate Range	-	30
Operate Range [Max]	35 AT	35 - 50 AT
Operate Range [Min]	15	15 - 25
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power - Rated	5 W	5 W
Release Range	-	5 AT
Release Range	-	45 AT
Size - Body [x]	0.252 "	0.252 "
Size - Body [x]	6.4 mm	6.4 mm
Size - Body [y]	2.31 mm	2.31 mm
Size - Body [y]	0.091 "	0.091 "
Size - Body [z]	0.091 in	0.091 in
Size - Body [z]	2.31 mm	2.31 mm
Termination Style	J Lead	Gull Wing, J Lead
Type	Molded Body Reed	Molded Body Reed
Voltage - Switching AC	100 V	100 V
Voltage - Switching DC	140 V	140 V

CT05 Series

SWITCH REED SPST-NO 250MA 100V

Part	Current - Carry	Height Above Board	Height Above Board	Operate Range [Max] [custom]	Operate Range [Min] [custom]	Voltage - Switching DC	Current - Switching	Termination Style	Type	Power - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage - Switching AC	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [z]	Size - Body [y]	Size - Body [z]	Mounting Type	Operate Range [Min]	Operate Range [Max]	Release Range [Min]	Release Range [Max]
Coto Technology CT05-3050-G1	500 mA	0.094 "	2.4 mm	50	30	140 V	250 mA, 350 mA	Gull Wing	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount
Coto Technology CT05-2550-J1	500 mA	0.094 "	2.4 mm			140 V	250 mA, 350 mA	J Lead	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount	25	50 AT	5 AT	45 AT
Coto Technology CT05-2550-G1	500 mA	0.094 "	2.4 mm			140 V	250 mA, 350 mA	Gull Wing	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount	25	50 AT	5 AT	45 AT
Coto Technology CT05-1535-J1	500 mA	0.094 "	2.4 mm			140 V	250 mA, 350 mA	J Lead	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount	15	35 AT
Coto Technology CT05-1535-G1	500 mA	0.094 "	2.4 mm			140 V	250 mA, 350 mA	Gull Wing	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount	15	35 AT
Coto Technology CT05-3050-J1	500 mA	0.094 "	2.4 mm	50	30	140 V	250 mA, 350 mA	J Lead	Molded Body Reed	5 W	125 °C	-40 °C	SPST-NO	100 V	0.252 "	2.31 mm	6.4 mm	0.091 in	0.091 "	2.31 mm	Surface Mount
