FN258HVIT-55-34
ObsoleteTE Connectivity Raychem Cable Protection

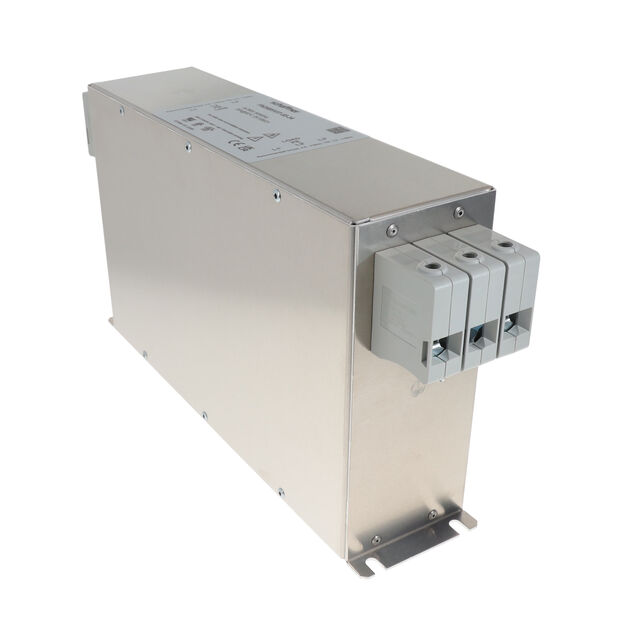

LINE FILTER 55A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN258HVIT-55-34
ObsoleteTE Connectivity Raychem Cable Protection
LINE FILTER 55A CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN258HVIT-55-34 |
|---|---|
| Applications | Power Drive Systems, Inverters |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Two Stage |
| Current | 55 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 400 V |
| Voltage - Rated AC (Phase to Phase) | 690 V |
FN258HVIT Series
| Part | Termination Style | Voltage - Rated AC (Phase to Phase) | Configuration | Applications | Operating Temperature [custom] | Frequency - Operating [Max] | Frequency - Operating [Min] | Current | Filter Type | Mounting Type | Approval Agency | Voltage - Rated AC (Phase to Ground/Neutral) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Terminal Block | 690 V | Two Stage | Inverters Power Drive Systems | -25 °C 100 °C | 60 Hz | DC | 30 A | Three Phase (Delta) | Chassis Mount | CSA ENEC UR | 400 V |
TE Connectivity Raychem Cable Protection | Terminal Block | 690 V | Two Stage | Inverters Power Drive Systems | -25 °C 100 °C | 60 Hz | DC | 130 A | Three Phase (Delta) | Chassis Mount | CSA ENEC UR | 400 V |
TE Connectivity Raychem Cable Protection | Terminal Block | 690 V | Two Stage | Inverters Power Drive Systems | -25 °C 100 °C | 60 Hz | DC | 7 A | Three Phase (Delta) | Chassis Mount | CSA ENEC UR | 400 V |
TE Connectivity Raychem Cable Protection | Terminal Block | 690 V | Two Stage | Inverters Power Drive Systems | -25 °C 100 °C | 60 Hz | DC | 75 A | Three Phase (Delta) | Chassis Mount | CSA ENEC UR | 400 V |
TE Connectivity Raychem Cable Protection | Terminal Block | 690 V | Two Stage | Inverters Power Drive Systems | -25 °C 100 °C | 60 Hz | DC | 55 A | Three Phase (Delta) | Chassis Mount | CSA ENEC UR | 400 V |
TE Connectivity Raychem Cable Protection | Terminal Block | 690 V | Two Stage | Inverters Power Drive Systems | -25 °C 100 °C | 60 Hz | DC | 42 A | Three Phase (Delta) | Chassis Mount | CSA ENEC UR | 400 V |
TE Connectivity Raychem Cable Protection | Terminal Block | 690 V | Two Stage | Inverters Power Drive Systems | -25 °C 100 °C | 60 Hz | DC | 100 A | Three Phase (Delta) | Chassis Mount | CSA ENEC UR | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FN258HVIT Series
Three Phase (Delta) EMC/EMI Line Filter 55 A DC ~ 60Hz Two Stage Terminal Block
