FN258HVIT-75-34

Obsolete

TE Connectivity Raychem Cable Protection

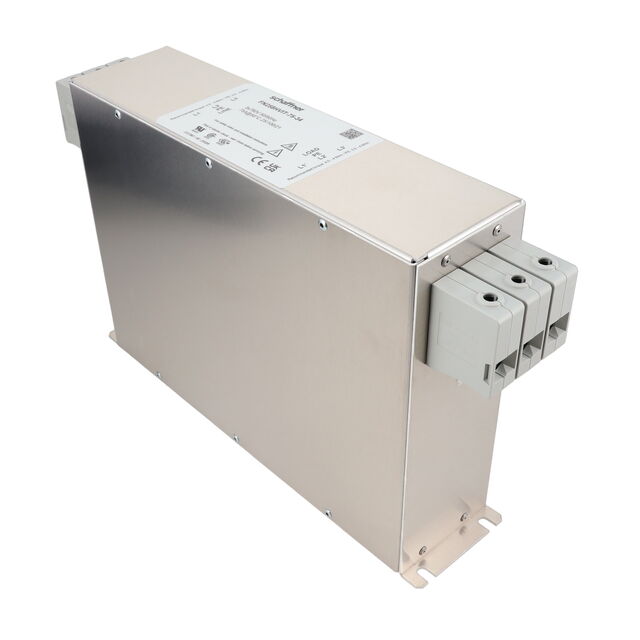

LINE FILTER 75A CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN258HVIT-75-34

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 75A CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN258HVIT-75-34

Applications	Power Drive Systems, Inverters
Approval Agency	CSA, ENEC, UR
Configuration	Two Stage
Current	75 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	400 V
Voltage - Rated AC (Phase to Phase)	690 V

FN258HVIT Series

Part	Termination Style	Voltage - Rated AC (Phase to Phase)	Configuration	Applications	Operating Temperature [custom]	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Filter Type	Mounting Type	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)
TE Connectivity Raychem Cable Protection FN258HVIT-30-33	Terminal Block	690 V	Two Stage	Inverters Power Drive Systems	-25 °C 100 °C	60 Hz	DC	30 A	Three Phase (Delta)	Chassis Mount	CSA ENEC UR	400 V
TE Connectivity Raychem Cable Protection FN258HVIT-130-35	Terminal Block	690 V	Two Stage	Inverters Power Drive Systems	-25 °C 100 °C	60 Hz	DC	130 A	Three Phase (Delta)	Chassis Mount	CSA ENEC UR	400 V
TE Connectivity Raychem Cable Protection FN258HVIT-7-29	Terminal Block	690 V	Two Stage	Inverters Power Drive Systems	-25 °C 100 °C	60 Hz	DC	7 A	Three Phase (Delta)	Chassis Mount	CSA ENEC UR	400 V
TE Connectivity Raychem Cable Protection FN258HVIT-75-34	Terminal Block	690 V	Two Stage	Inverters Power Drive Systems	-25 °C 100 °C	60 Hz	DC	75 A	Three Phase (Delta)	Chassis Mount	CSA ENEC UR	400 V
TE Connectivity Raychem Cable Protection FN258HVIT-55-34	Terminal Block	690 V	Two Stage	Inverters Power Drive Systems	-25 °C 100 °C	60 Hz	DC	55 A	Three Phase (Delta)	Chassis Mount	CSA ENEC UR	400 V
TE Connectivity Raychem Cable Protection FN258HVIT-42-33	Terminal Block	690 V	Two Stage	Inverters Power Drive Systems	-25 °C 100 °C	60 Hz	DC	42 A	Three Phase (Delta)	Chassis Mount	CSA ENEC UR	400 V
TE Connectivity Raychem Cable Protection FN258HVIT-100-35	Terminal Block	690 V	Two Stage	Inverters Power Drive Systems	-25 °C 100 °C	60 Hz	DC	100 A	Three Phase (Delta)	Chassis Mount	CSA ENEC UR	400 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FN258HVIT Series

Three Phase (Delta) EMC/EMI Line Filter 75 A DC ~ 60Hz Two Stage Terminal Block
