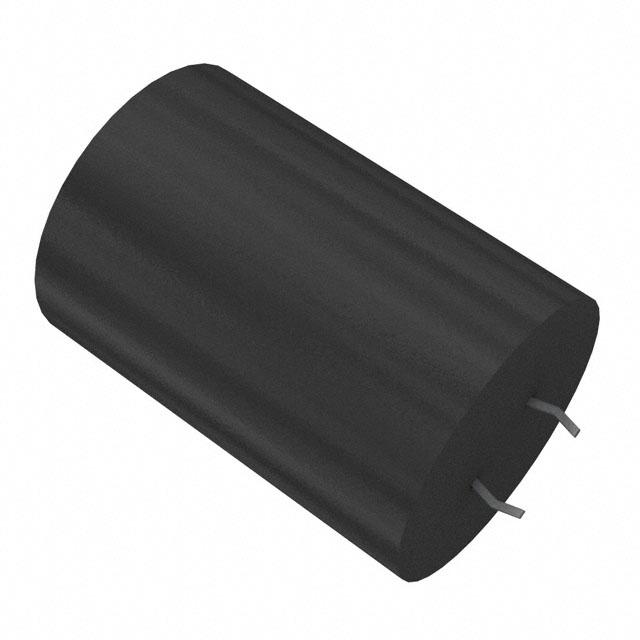

ALC40A331DF450

Active

KEMET

CAP ALUM 330UF 20% 450V SNAP TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ALC40A331DF450

Active

KEMET

CAP ALUM 330UF 20% 450V SNAP TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC40A331DF450

Applications	General Purpose
Capacitance	330 µF
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Impedance	198 mOhms
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	8000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	5.14 A
Ripple Current @ Low Frequency	2.53 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	450 V

ALC40A Series

Part	Impedance	Polarization	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Lead Spacing	Lead Spacing	Capacitance	Mounting Type	Tolerance	Voltage - Rated	Ripple Current @ Low Frequency	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC40A471DE400	192 mOhms	Polar	4.73 A	300 mOhm	8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	470 µF	Through Hole	20 %	400 V	2.5 A	Radial Can - Snap-In	1.378 in	35 mm	1.85 in	47 mm
KEMET ALC40A331DF450	198 mOhms	Polar	5.14 A		8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	330 µF	Through Hole	20 %	450 V	2.53 A	Radial Can - Snap-In	1.378 in	35 mm	2.047 in	52 mm
KEMET ALC40A331DD400	266 mOhms	Polar	3.64 A	386 mOhm	8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	330 µF	Through Hole	20 %	400 V	1.98 A	Radial Can - Snap-In	1.378 in	35 mm			42 mm	1.654 in
KEMET ALC40A221EC500	820 mOhms	Polar	4.09 A	1.02 Ohm	9000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	220 µF	Through Hole	20 %	500 V	2.03 A	Radial Can - Snap-In	1.575 "	40 mm	1.378 in	35 mm
KEMET ALC40A471DF400	192 mOhms	Polar	4.4 A	277 mOhm	8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	470 µF	Through Hole	20 %	400 V	2.51 A	Radial Can - Snap-In	1.378 in	35 mm	2.047 in	52 mm
KEMET ALC40A471DH450	138 mOhms	Polar	5.82 A	232 mOhm	8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	470 µF	Through Hole	20 %	450 V	3 A	Radial Can - Snap-In	1.378 in	35 mm	2.441 in	62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.93
		10	$ 11.96
		100	$ 9.31
		1000	$ 8.08

Description

General part information

ALC40A Series

330 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 206mOhm @ 100Hz 8000 Hrs @ 105°C
