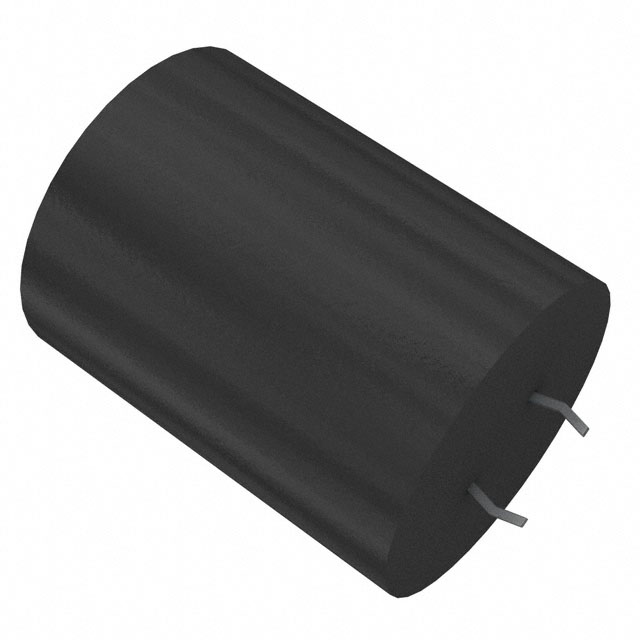

ALC40A471DE400

Active

KEMET

CAP ALUM 470UF 20% 400V SNAP TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ALC40A471DE400

ALC40A471DE400

Active

KEMET

CAP ALUM 470UF 20% 400V SNAP TH

Deep-Dive with AI

DocumentsDatasheet ALC40A471DE400

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALC40A471DE400

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	300 mOhm
Height - Seated (Max) [Max] [z]	1.85 in
Height - Seated (Max) [Max] [z]	47 mm
Impedance	192 mOhms
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	8000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	4.73 A
Ripple Current @ Low Frequency	2.5 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	400 V

ALC40A Series

Part	Impedance	Polarization	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Lead Spacing	Lead Spacing	Capacitance	Mounting Type	Tolerance	Voltage - Rated	Ripple Current @ Low Frequency	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC40A471DE400	192 mOhms	Polar	4.73 A	300 mOhm	8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	470 µF	Through Hole	20 %	400 V	2.5 A	Radial Can - Snap-In	1.378 in	35 mm	1.85 in	47 mm
KEMET ALC40A331DF450	198 mOhms	Polar	5.14 A		8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	330 µF	Through Hole	20 %	450 V	2.53 A	Radial Can - Snap-In	1.378 in	35 mm	2.047 in	52 mm
KEMET ALC40A331DD400	266 mOhms	Polar	3.64 A	386 mOhm	8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	330 µF	Through Hole	20 %	400 V	1.98 A	Radial Can - Snap-In	1.378 in	35 mm			42 mm	1.654 in
KEMET ALC40A221EC500	820 mOhms	Polar	4.09 A	1.02 Ohm	9000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	220 µF	Through Hole	20 %	500 V	2.03 A	Radial Can - Snap-In	1.575 "	40 mm	1.378 in	35 mm
KEMET ALC40A471DF400	192 mOhms	Polar	4.4 A	277 mOhm	8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	470 µF	Through Hole	20 %	400 V	2.51 A	Radial Can - Snap-In	1.378 in	35 mm	2.047 in	52 mm
KEMET ALC40A471DH450	138 mOhms	Polar	5.82 A	232 mOhm	8000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	470 µF	Through Hole	20 %	450 V	3 A	Radial Can - Snap-In	1.378 in	35 mm	2.441 in	62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.67
		10	$ 11.72
		100	$ 9.13
		1000	$ 7.92

Description

General part information

ALC40A Series

470 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 300mOhm @ 100Hz 8000 Hrs @ 105°C
