CLP-116-02-G-D-BE-TR

Active

Samtec Inc.

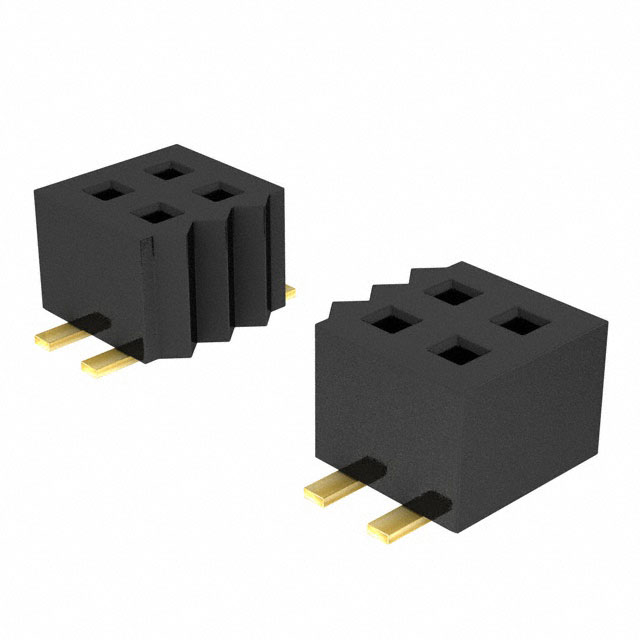

CONN SOCKET STRIP SKT 32 POS 1.27MM SOLDER ST BOTTOM ENTRY SMD TIGER CLAW™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLP-116-02-G-D-BE-TR

Active

Samtec Inc.

CONN SOCKET STRIP SKT 32 POS 1.27MM SOLDER ST BOTTOM ENTRY SMD TIGER CLAW™ T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLP-116-02-G-D-BE-TR

Connector Type	Receptacle, Bottom Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder
Voltage Rating	330 VDC, 240 VAC

CLP-109 Series

Headers & Wire Housings Low Profile Dual-Wipe Socket, .050" Pitch

...

Part	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Voltage Rating	Fastening Type	Contact Finish - Post	Contact Material	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Termination	Contact Finish - Mating	Contact Shape	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. CLP-110-02-L-D-K-TR	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	20	2	10 çin	0.25 çm	Black	Pick and Place	-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Tin	Phosphor Bronze	3.3 A	UL94 V-0	All	0.084 in	2.14 mm	Solder	Gold	Square	Surface Mount
Samtec Inc. CLP-118-02-F-D	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	36	2	3.9 µin	0.099 µm	Black		-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Tin	Phosphor Bronze	3.3 A	UL94 V-0	All	0.09 in	2.29 mm	Solder	Gold	Square	Surface Mount
Samtec Inc. CLP-105-02-S-D-BE-A	Receptacle Bottom Entry	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	10	2	30 Áin	0.76 Ám	Black	Board Guide	-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Tin	Phosphor Bronze	3.3 A	UL94 V-0	All	0.084 in	2.14 mm	Solder	Gold	Square	Surface Mount
Samtec Inc. CLP-115-02-G-D-A-TR	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	30	2	10 çin	0.25 çm	Black	Board Guide	-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Gold	Phosphor Bronze	3.3 A	UL94 V-0	All	0.084 in	2.14 mm	Solder	Gold	Square	Surface Mount	3 µin	0.076 µm
Samtec Inc. CLP-106-02-FM-D-TR	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	12	2	3 µin	0.076 µm	Black		-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Tin	Phosphor Bronze	3.3 A	UL94 V-0	All	0.084 in	2.14 mm	Solder	Gold	Square	Surface Mount
Samtec Inc. CLP-135-02-L-D-PA-TR	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	70	2	10 çin	0.25 çm	Black	Pick and Place	-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Tin	Phosphor Bronze	3.3 A	UL94 V-0	All	0.084 in	2.14 mm	Solder	Gold	Square	Surface Mount
Samtec Inc. CLP-125-02-G-D-BE-PA-TR	Receptacle Bottom Entry	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	50	2	10 çin	0.25 çm	Black	Pick and Place	-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Gold	Phosphor Bronze	3.3 A	UL94 V-0	All	0.084 in	2.14 mm	Solder	Gold	Square	Surface Mount	3 µin	0.076 µm
Samtec Inc. CLP-103-02-LM-DH	Receptacle	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	6	2	10 çin	0.25 çm	Black		-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Tin	Phosphor Bronze	3.3 A	UL94 V-0	All	0.135 "	3.43 mm	Solder	Gold	Square	Surface Mount Right Angle
Samtec Inc. CLP-115-02-S-D-BE-P-TR	Receptacle Bottom Entry	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	30	2	30 Áin	0.76 Ám	Black	Pick and Place	-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Tin	Phosphor Bronze	3.3 A	UL94 V-0	All	0.084 in	2.14 mm	Solder	Gold	Square	Surface Mount
Samtec Inc. CLP-116-02-G-D-BE-TR	Receptacle Bottom Entry	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm		2	10 çin	0.25 çm	Black		-55 °C	125 °C	Female Socket	240 VAC 330 VDC	Push-Pull	Gold	Phosphor Bronze	3.3 A	UL94 V-0	All	0.084 in	2.14 mm	Solder	Gold	Square	Surface Mount	3 µin	0.076 µm
