WI-M-16-10-0

Active

MUELLER ELECTRIC

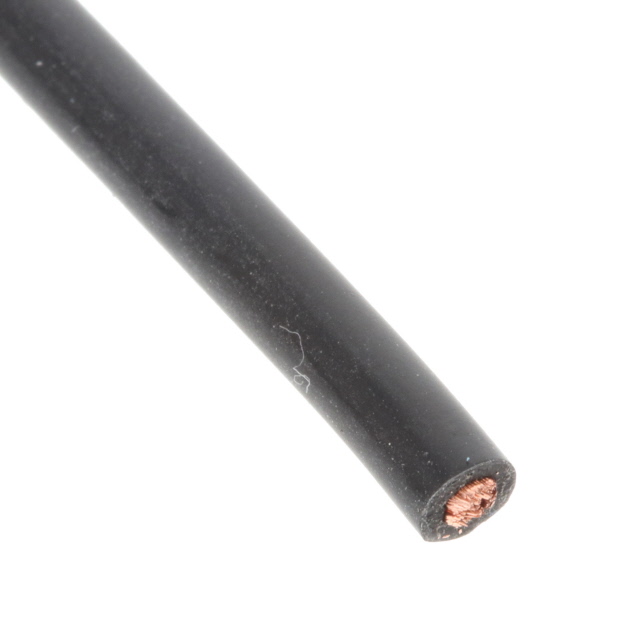

TEST LEAD 16AWG 1100V BLACK 10'

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

TEST LEAD 16AWG 1100V BLACK 10'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WI-M-16-10-0	WI-M-16 Series

Conductor Material	Copper	Copper
Conductor Strand [custom]	0.0031 in	0.0031 in
Conductor Strand [custom]	266	266
Jacket (Insulation) Diameter [diameter]	3.2 mm	3.2 mm
Jacket (Insulation) Diameter [diameter]	0.126 in	0.126 in
Jacket Color	Black	Red, Black
Length	10 ft	10 ft
Length	3.05 m	3.05 m
Length	-	25 ft
Length	-	7.62 m
Operating Temperature	200 °C	200 °C
Voltage	1100 V	1100 V
Wire Gauge	16 AWG	16 AWG

TEST LEAD 16AWG 1100V RED 10'

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Operating Temperature	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Material	Voltage	Length [x]	Length [x]
MUELLER ELECTRIC WI-M-16-10-2	0.0031 in	266	16 AWG	200 °C	Red	3.2 mm	0.126 in	10 ft	3.05 m	Copper	1100 V
MUELLER ELECTRIC WI-M-16-25-0	0.0031 in	266	16 AWG	200 °C	Black	3.2 mm	0.126 in			Copper	1100 V	25 ft	7.62 m
MUELLER ELECTRIC WI-M-16-25-2	0.0031 in	266	16 AWG	200 °C	Red	3.2 mm	0.126 in			Copper	1100 V	25 ft	7.62 m
MUELLER ELECTRIC WI-M-16-10-0	0.0031 in	266	16 AWG	200 °C	Black	3.2 mm	0.126 in	10 ft	3.05 m	Copper	1100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 AWG Test Lead Wire 266/0.0031" Black 1100V 10.00' (3.05m)
