WI-M-16-25-2

Active

MUELLER ELECTRIC

TEST LEAD 16AWG 1100V RED 25'

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

TEST LEAD 16AWG 1100V RED 25'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

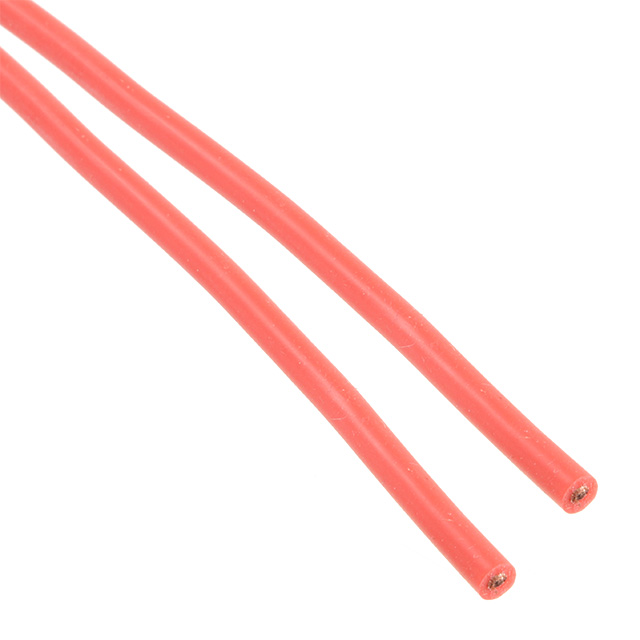

16 AWG Test Lead Wire 266/0.0031" Red 1100V 25.00' (7.62m)

Technical documentation and resources

Specification	WI-M-16-25-2	WI-M-16 Series

Conductor Material	Copper	Copper
Conductor Strand [custom]	0.0031 in	0.0031 in
Conductor Strand [custom]	266	266
Jacket (Insulation) Diameter [diameter]	3.2 mm	3.2 mm
Jacket (Insulation) Diameter [diameter]	0.126 in	0.126 in
Jacket Color	Red	Red, Black
Length	-	10 ft
Length	-	3.05 m
Length [x]	25 ft	25 ft
Length [x]	7.62 m	7.62 m
Operating Temperature	200 °C	200 °C
Voltage	1100 V	1100 V
Wire Gauge	16 AWG	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Operating Temperature	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Material	Voltage	Length [x]	Length [x]
MUELLER ELECTRIC WI-M-16-10-2	0.0031 in	266	16 AWG	200 °C	Red	3.2 mm	0.126 in	10 ft	3.05 m	Copper	1100 V
MUELLER ELECTRIC WI-M-16-25-0	0.0031 in	266	16 AWG	200 °C	Black	3.2 mm	0.126 in			Copper	1100 V	25 ft	7.62 m
MUELLER ELECTRIC WI-M-16-25-2	0.0031 in	266	16 AWG	200 °C	Red	3.2 mm	0.126 in			Copper	1100 V	25 ft	7.62 m
MUELLER ELECTRIC WI-M-16-10-0	0.0031 in	266	16 AWG	200 °C	Black	3.2 mm	0.126 in	10 ft	3.05 m	Copper	1100 V
