Specification	TAS5613PHD2EVM

Amplifier Type	Class D
Board Type	Fully Populated
Channels	1, 2
Contents	Board
Load Impedance	4 Ohm, 2 Ohm
Maximum Output Power (per Channel)	300 W, 150 W
Output Type	1-Channel (Mono) or 2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	TAS5613PHD, TAS5613
Voltage - Supply (Maximum)	36 VDC
Voltage - Supply (Minimum)	18 VAC

TAS561 Series

Part	Board Type	Supplied Contents	Utilized IC / Part	Amplifier Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Type	Contents	Maximum Output Power (per Channel)	Channels	Load Impedance

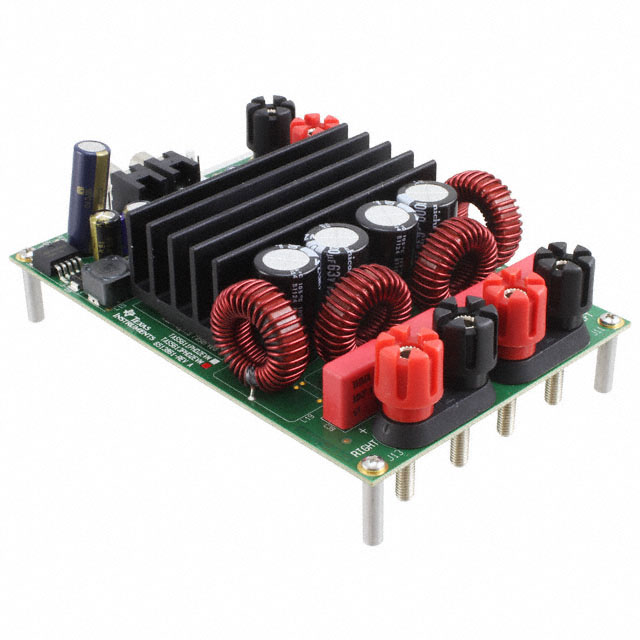

Texas Instruments TAS5613PHD2EVM	Fully Populated	Board(s)	TAS5613 TAS5613PHD	Class D	36 VDC	18 VAC	1-Channel (Mono) or 2-Channel (Stereo)	Board	150 W 300 W	1 2	2 Ohm 4 Ohm
Texas Instruments TAS5611PHD2EVM	Fully Populated	Board(s)	TAS5611PHD	Class D	32.5 V	16 VDC	1-Channel (Mono) or 2-Channel (Stereo)	Board	125 W 250 W	1 2	2 Ohm 4 Ohm
Texas Instruments TAS5612PHD2EVM	Fully Populated	Board(s) Cable(s) Power Supply	TAS5612PHD	Class D	32.5 V	16 VDC	1-Channel (Mono) or 2-Channel (Stereo)	Board Cable Power Supply	125 W 250 W	1 2	2 Ohm 4 Ohm
Texas Instruments TAS5614PHD2EVM	Fully Populated	Board(s) Cable(s) Power Supply	TAS5614PHD	Class D	36 VDC	18 VAC	1-Channel (Mono) or 2-Channel (Stereo)	Board Cable Power Supply	150 W 300 W	1 2	2 Ohm 4 Ohm
Texas Instruments TAS5616DKD2EVM	Fully Populated	Board(s) Cable(s) Power Supply	TAS5616	Class D	50 VDC	25 V	1-Channel (Mono) or 2-Channel (Stereo)	Board Cable Power Supply	160 W 300 W	1 2	4 Ohm 8 Ohm

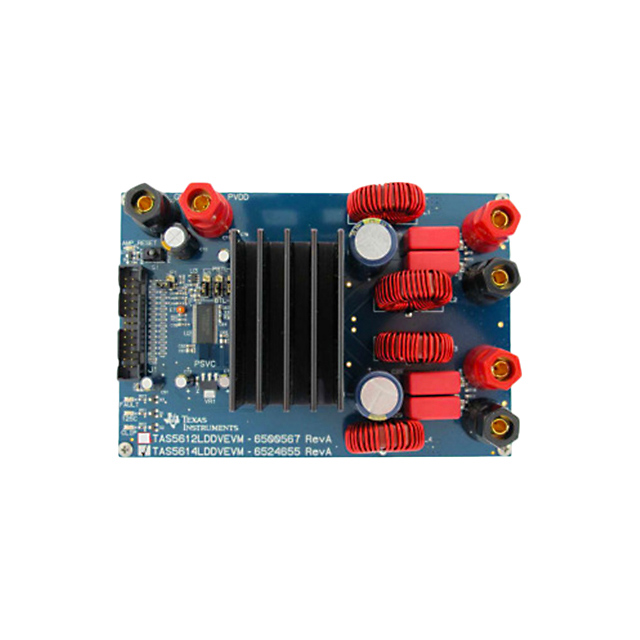

Texas Instruments TAS5614LADDVEVM	Fully Populated	Board(s) Cable(s)	TAS5614LA	Class D	38 VDC	12 VDC	1-Channel (Mono) or 2-Channel (Stereo)	Board Cable	150 W 300 W	1 2	2 Ohm 4 Ohm
Texas Instruments TAS5615PHD2EVM	Fully Populated	Board(s)	TAS5615	Class D	50 VDC	25 V	1-Channel (Mono) or 2-Channel (Stereo)	Board	160 W 300 W	1 2	4 Ohm 8 Ohm
Texas Instruments TAS5615DKD2EVM	Fully Populated	Board(s)	TAS5615	Class D	50 VDC	25 V	1-Channel (Mono) or 2-Channel (Stereo)	Board	160 W 300 W	1 2	4 Ohm 8 Ohm
