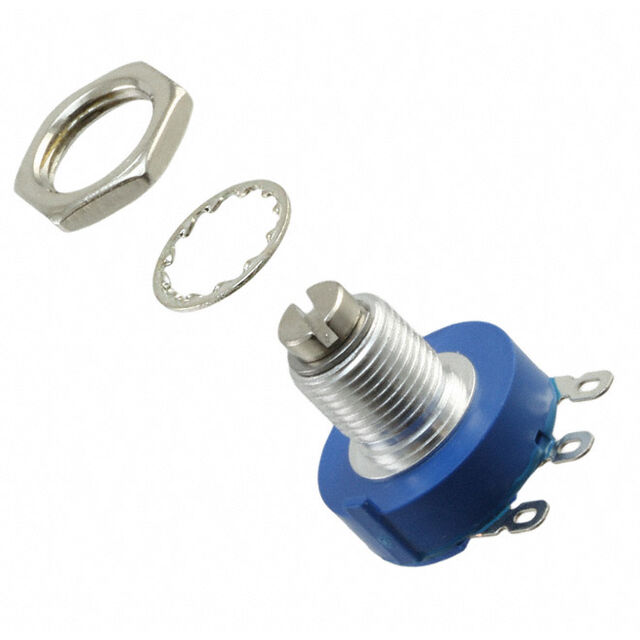

3852A-166-103AL

Active

Bourns Inc.

POT 10K OHM 2W CERMET LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3852A-166-103AL

Active

Bourns Inc.

POT 10K OHM 2W CERMET LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3852A-166-103AL

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length	12.7 mm
Actuator Length [x]	0.5 in
Actuator Type	Slotted
Adjustment Type	Side Adjustment
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	2 W
Resistance (Ohms)	10k
Resistive Material	Cermet
Rotation	280 °
Size - Body [diameter]	0.75 in
Size - Body [diameter]	19.05 mm
Taper	Linear
Temperature Coefficient	150 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3852A Series

Part	Actuator Diameter	Actuator Diameter [diameter]	Size - Body [diameter]	Size - Body [diameter]	Resistive Material	Actuator Type	Rotation	Taper	Adjustment Type	Temperature Coefficient	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Bushing Thread	Number of Turns	Termination Style	Tolerance	Power (Watts)	Number of Gangs	Actuator Length [z]	Actuator Length [z]	Actuator Length	Resistance (Ohms)
Bourns Inc. 3852A-202-102AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	1 kOhms	15.88 mm	0.625 in	3/8-32	1	Solder Lug	10 %	2 W	1
Bourns Inc. 3852A-282-252AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	2.5 kOhms			3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in
Bourns Inc. 3852A-162-102AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	1 kOhms		0.5 in	3/8-32	1	Solder Lug	10 %	2 W	1			12.7 mm
Bourns Inc. 3852A-282-502AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	5 kOhms			3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in
Bourns Inc. 3852A-286-103AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	Side Adjustment	150 ppm/°C				3/8-32	1	PC Pins	10 %	2 W	1	22.23 mm	0.875 in		10k
Bourns Inc. 3852A-282-102AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	1 kOhms			3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in
Bourns Inc. 3852A-282-254AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C				3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in		250k
Bourns Inc. 3852A-166-103AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	Side Adjustment	150 ppm/°C			0.5 in	3/8-32	1	PC Pins	10 %	2 W	1			12.7 mm	10k
Bourns Inc. 3852A-282-101AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	100 Ohms			3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in
Bourns Inc. 3852A-202-252AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	2.5 kOhms	15.88 mm	0.625 in	3/8-32	1	Solder Lug	10 %	2 W	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 8.02

Description

General part information

3852A Series

10k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Cermet 2W PC Pins
