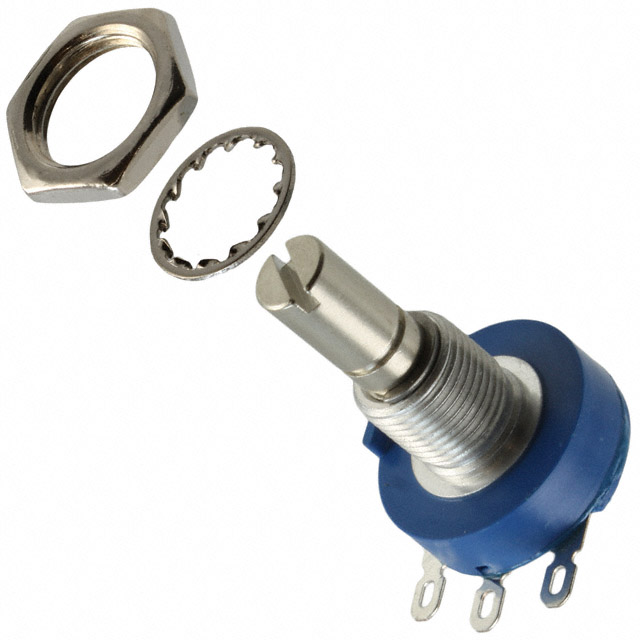

3852A-282-502AL

Active

Bourns Inc.

ROTARY POTENTIOMETER, 5KOHM, 2W ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Datasheet

3852A-282-502AL

Active

Bourns Inc.

ROTARY POTENTIOMETER, 5KOHM, 2W ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsProduct Change Notice EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3852A-282-502AL

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length [z]	22.23 mm
Actuator Length [z]	0.875 in
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	2 W
Resistance (Ohms)	5 kOhms
Resistive Material	Cermet
Rotation	280 °
Size - Body [diameter]	0.75 in
Size - Body [diameter]	19.05 mm
Taper	Linear
Temperature Coefficient	150 ppm/°C
Termination Style	Solder Lug
Tolerance	10 %

3852A Series

Part	Actuator Diameter	Actuator Diameter [diameter]	Size - Body [diameter]	Size - Body [diameter]	Resistive Material	Actuator Type	Rotation	Taper	Adjustment Type	Temperature Coefficient	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Bushing Thread	Number of Turns	Termination Style	Tolerance	Power (Watts)	Number of Gangs	Actuator Length [z]	Actuator Length [z]	Actuator Length	Resistance (Ohms)
Bourns Inc. 3852A-202-102AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	1 kOhms	15.88 mm	0.625 in	3/8-32	1	Solder Lug	10 %	2 W	1
Bourns Inc. 3852A-282-252AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	2.5 kOhms			3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in
Bourns Inc. 3852A-162-102AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	1 kOhms		0.5 in	3/8-32	1	Solder Lug	10 %	2 W	1			12.7 mm
Bourns Inc. 3852A-282-502AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	5 kOhms			3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in
Bourns Inc. 3852A-286-103AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	Side Adjustment	150 ppm/°C				3/8-32	1	PC Pins	10 %	2 W	1	22.23 mm	0.875 in		10k
Bourns Inc. 3852A-282-102AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	1 kOhms			3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in
Bourns Inc. 3852A-282-254AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C				3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in		250k
Bourns Inc. 3852A-166-103AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	Side Adjustment	150 ppm/°C			0.5 in	3/8-32	1	PC Pins	10 %	2 W	1			12.7 mm	10k
Bourns Inc. 3852A-282-101AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	100 Ohms			3/8-32	1	Solder Lug	10 %	2 W	1	22.23 mm	0.875 in
Bourns Inc. 3852A-202-252AL	6.35 mm	0.25 in	0.75 in	19.05 mm	Cermet	Slotted	280 °	Linear	User Defined	150 ppm/°C	2.5 kOhms	15.88 mm	0.625 in	3/8-32	1	Solder Lug	10 %	2 W	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.26
		10	$ 11.43
		25	$ 10.46
		50	$ 9.78
		100	$ 9.14
		250	$ 8.35
		500	$ 7.80
		1000	$ 7.27
Newark	Each	1	$ 14.20
		10	$ 12.15
		25	$ 10.29
		50	$ 10.07
		100	$ 9.84
		250	$ 9.53
		500	$ 9.20

Description

General part information

3852A Series

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 2W Solder Lug

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet
