1183-23X18YD
Active3M

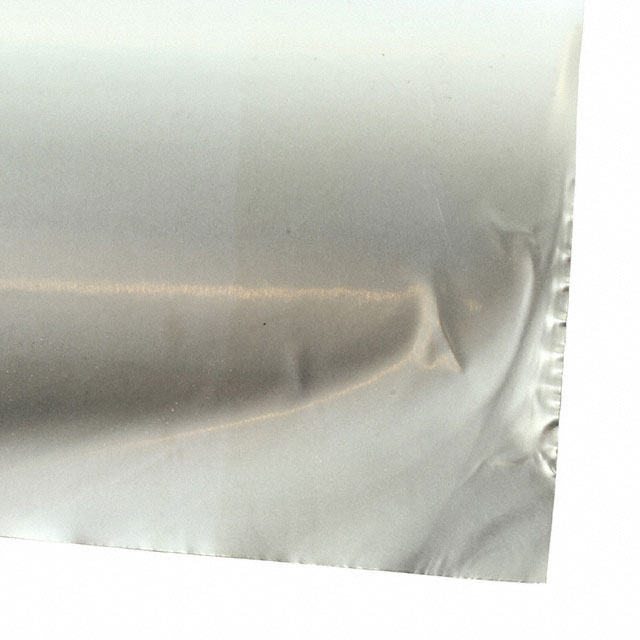

TAPE COPPER FOIL SILVER 23"X18YD
Deep-Dive with AI
Search across all available documentation for this part.
1183-23X18YD
Active3M
TAPE COPPER FOIL SILVER 23"X18YD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1183-23X18YD | 1183 Series |
|---|---|---|
| Adhesive | Acrylic | Conductive Acrylic, Conductive, Single Sided, Acrylic |
| Backing, Carrier | Copper Foil | Copper Foil, Tin Plated |
| Color | Silver | Silver |
| Length | 54 ft | 54 - 164 ft |
| Length | 16.5 m | 16.5 - 91.44 m |
| Length | 18 yd | 18 - 54.7 yd |
| Length | - | 36 " |
| Material | - | Tin-Plated Copper Foil |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 130 °C |
| Shelf Life | 60 Months | 60 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C | 27 - 80 °F |
| Storage/Refrigeration Temperature [Min] | 10 °C | 10 °C |
| Tape Type | Copper Foil | Copper Foil |
| Thickness | 0.068 mm | 0.068 mm |
| Thickness | 0.0027 " | 0.0027 " |
| Thickness | 2.7 mils | 2.7 mils |
| Thickness - Adhesive | 0.0013 " | 0.0013 " |
| Thickness - Adhesive | 1.3 mils | 1.3 mils |
| Thickness - Adhesive | 0.033 mm | 0.033 mm |
| Thickness - Backing, Carrier | 0.0014 in | 0.0014 in |
| Thickness - Backing, Carrier | 1.4 mils | 1.4 mils |
| Thickness - Backing, Carrier | 0.036 mm | 0.035 - 0.036 mm |
| Thickness - Overall | - | 0.003 " |
| Thickness - Overall | - | 0.07 mm |
| Type | - | Shielding Tape, Shielding Sheet |
| Usage | EMI/RFI Shielding | EMI Shielding, EMI/RFI Shielding |
| Width | - | 0.25 - 41.28 in |
| Width | - | 19.05 mm |
| Width | - | 0.75 - 25.4 in |
| Width | - | 1 5/8 |
| Width [x] | 584.2 mm | 12 - 584.2 mm |
| Width [x] | 23 in | 0.47 - 23 in |
1183 Series
TAPE COPPER FOIL SILV 3/4"X18YD
| Part | Usage | Length | Length | Length | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Backing, Carrier | Shelf Life Start | Color | Adhesive | Tape Type | Width | Width | Width | Shelf Life | Thickness - Overall | Thickness - Overall | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Type | Operating Temperature [Min] | Operating Temperature [Max] | Material | Width [x] | Width [x] | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Thickness | Thickness | Thickness | Length [x] | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EMI Shielding | 54 ft | 16.5 m | 18 yd | 0.0014 in | 1.4 mils | 0.035 mm | Copper Foil, Tin Plated | Date of Manufacture | Silver | Conductive Acrylic | Copper Foil | 0.75 in | 19.05 mm | 0.75 in | 60 Months | |||||||||||||||||||
EMI Shielding | 54 ft | 16.5 m | 18 yd | 0.0014 in | 1.4 mils | 0.035 mm | Copper Foil, Tin Plated | Date of Manufacture | Silver | Conductive Acrylic | Copper Foil | 0.98 " | 25 mm | 60 Months | ||||||||||||||||||||
54 ft | 16.5 m | Date of Manufacture | Conductive, Single Sided | 0.25 in | 6.35 mm | 60 Months | 0.003 " | 0.07 mm | 27 °C, 80 °F | 10 °C | Shielding Tape | -40 °C | 130 °C | Tin-Plated Copper Foil | ||||||||||||||||||||
EMI Shielding | 54 ft | 16.5 m | 18 yd | 0.0014 in | 1.4 mils | 0.035 mm | Copper Foil, Tin Plated | Date of Manufacture | Silver | Conductive Acrylic | Copper Foil | 60 Months | 0.47 in | 12 mm | ||||||||||||||||||||
54 ft | 16.5 m | Date of Manufacture | Conductive, Single Sided | 0.75 in | 19.1 mm | 60 Months | 0.003 " | 0.07 mm | 27 °C, 80 °F | 10 °C | Shielding Tape | -40 °C | 130 °C | Tin-Plated Copper Foil | ||||||||||||||||||||
EMI/RFI Shielding | 54 ft | 16.5 m | 18 yd | 0.0014 in | 1.4 mils | 0.036 mm | Copper Foil | Date of Manufacture | Silver | Acrylic | Copper Foil | 60 Months | 27 °C, 80 °F | 10 °C | 23 in | 584.2 mm | 0.0013 " | 1.3 mils | 0.033 mm | 0.068 mm | 0.0027 " | 2.7 mils | ||||||||||||
EMI Shielding | 54 ft | 16.5 m | 18 yd | 0.0014 in | 1.4 mils | 0.035 mm | Copper Foil, Tin Plated | Date of Manufacture | Silver | Conductive Acrylic | Copper Foil | 60 Months | 23 in | 584.2 mm | ||||||||||||||||||||
EMI Shielding | 54 ft | 16.5 m | 18 yd | 0.0014 in | 1.4 mils | 0.035 mm | Copper Foil, Tin Plated | Date of Manufacture | Silver | Conductive Acrylic | Copper Foil | 60 Months | 7.7 in | 195.58 mm | ||||||||||||||||||||
3M 1183 1" | 54 ft | 16.5 m, 91.44 cm | Date of Manufacture | Conductive, Single Sided | 25.4 mm | 60 Months | 0.003 " | 0.07 mm | 27 °C, 80 °F | 10 °C | Shielding Sheet, Shielding Tape | -40 °C | 130 °C | Tin-Plated Copper Foil | 1 in | 36 " | ||||||||||||||||||
EMI Shielding | 164 ft | 50 m | 54.7 yds | 0.0014 in | 1.4 mils | 0.035 mm | Copper Foil, Tin Plated | Date of Manufacture | Silver | Conductive Acrylic | Copper Foil | 1.63 in, 41.28 mm | 60 Months | 1 5/8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1759.92 | |
Description
General part information
1183 Series
Copper Foil Tape Acrylic Adhesive Silver 23.00" (584.20mm) X 54' (16.5m) 18 yds
