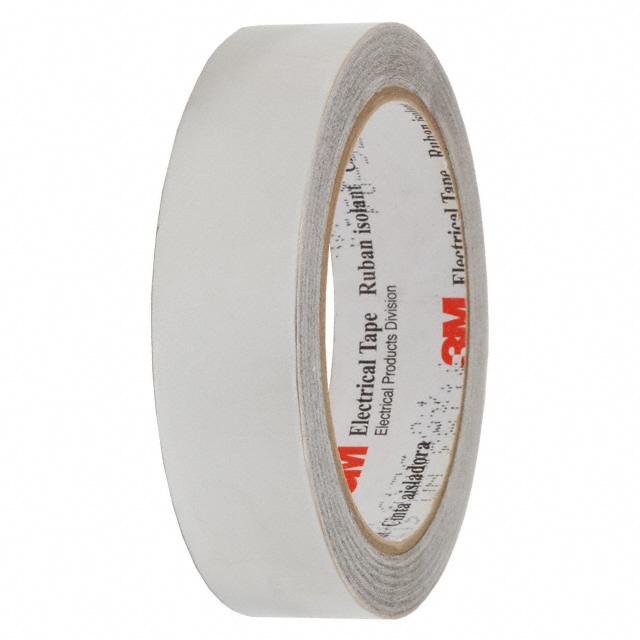

1183 1"

Active

RF EMI SHIELDING TAPE 54' X 1"

Search across all available documentation for this part.

Active

RF EMI SHIELDING TAPE 54' X 1"

Technical Specifications

Parameters and characteristics for this part

Specification	1183 1"

Adhesive	Conductive, Single Sided
Length	16.5 m, 91.44 cm
Length	54 ft
Length [x]	36 "
Material	Tin-Plated Copper Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.003 "
Thickness - Overall	0.07 mm
Type	Shielding Sheet, Shielding Tape
Width	25.4 mm
Width [x]	1 in

RF EMI SHIELDING TAPE 54' X 1"

Part	Length	Length	Shelf Life	Width	Width [x]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Adhesive	Length [x]	Thickness - Overall	Thickness - Overall	Shelf Life Start	Operating Temperature [Min]	Operating Temperature [Max]	Type	Material
3M 1183 1"	16.5 m, 91.44 cm	54 ft	60 Months	25.4 mm	1 in	27 °C, 80 °F	10 °C	Conductive, Single Sided	36 "	0.003 "	0.07 mm	Date of Manufacture	-40 °C	130 °C	Shielding Sheet, Shielding Tape	Tin-Plated Copper Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Tape 1183 Tin-Plated Copper Foil Conductive, Single Sided 1.000" (25.40mm) X 54.000' (16.50m) X 0.003" (0.07mm)
