1183 1/4"

Active

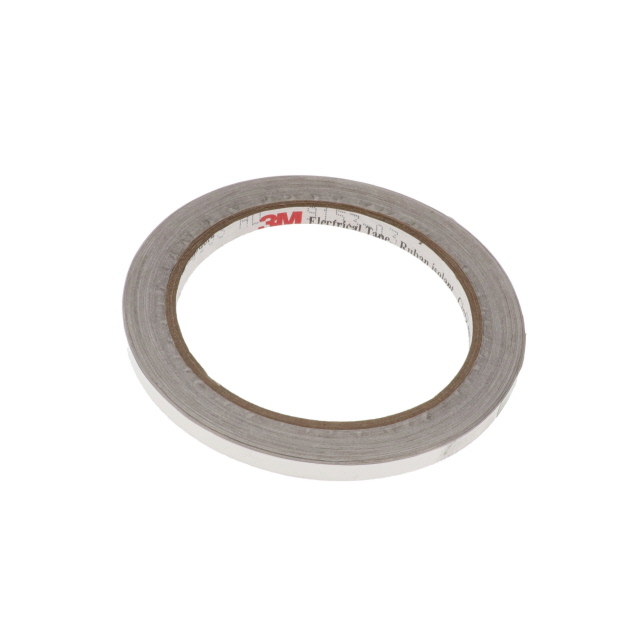

RF EMI SHIELDING TAPE 54'X0.25"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1183 1/4"

Active

RF EMI SHIELDING TAPE 54'X0.25"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.29
		10	$ 27.75
		36	$ 26.21
		72	$ 24.66
		108	$ 23.12
		252	$ 21.58

Description

General part information

1183 Series

RF EMI Shielding Tape 1183 Tin-Plated Copper Foil Conductive, Single Sided 0.250" (6.35mm) X 54.000' (16.50m) X 0.003" (0.07mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1183 1/4"	1183 Series

Adhesive	Conductive, Single Sided	Conductive Acrylic, Conductive, Single Sided, Acrylic
Backing, Carrier	-	Copper Foil, Tin Plated
Color	-	Silver
Length	16.5 m	16.5 - 91.44 m
Length	54 ft	54 - 164 ft
Length	-	18 - 54.7 yd
Length	-	36 "
Material	Tin-Plated Copper Foil	Tin-Plated Copper Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	-	Copper Foil
Thickness	-	0.068 mm
Thickness	-	0.0027 "
Thickness	-	2.7 mils
Thickness - Adhesive	-	0.0013 "
Thickness - Adhesive	-	1.3 mils
Thickness - Adhesive	-	0.033 mm
Thickness - Backing, Carrier	-	0.0014 in
Thickness - Backing, Carrier	-	1.4 mils
Thickness - Backing, Carrier	-	0.035 - 0.036 mm
Thickness - Overall	0.003 "	0.003 "
Thickness - Overall	0.07 mm	0.07 mm
Type	Shielding Tape	Shielding Tape, Shielding Sheet
Usage	-	EMI Shielding, EMI/RFI Shielding
Width	0.25 in	0.25 - 41.28 in
Width	6.35 mm	0.75 - 25.4 in
Width	-	19.05 mm
Width	-	0.47 - 23 in
Width	-	12 - 584.2 mm
Width	-	1 5/8

1183 Series

TAPE COPPER FOIL SILV 3/4"X18YD

Part	Usage	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Shelf Life Start	Color	Adhesive	Tape Type	Width	Width	Width	Shelf Life	Thickness - Overall	Thickness - Overall	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material	Width [x]	Width [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Length [x]	Width
3M 1183 19MMX16,5M	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Copper Foil, Tin Plated	Date of Manufacture	Silver	Conductive Acrylic	Copper Foil	0.75 in	19.05 mm	0.75 in	60 Months
3M 1183 25MMX165MMC9	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Copper Foil, Tin Plated	Date of Manufacture	Silver	Conductive Acrylic	Copper Foil	0.98 "		25 mm	60 Months
3M 1183 1/4"		54 ft	16.5 m						Date of Manufacture		Conductive, Single Sided		0.25 in		6.35 mm	60 Months	0.003 "	0.07 mm	27 °C, 80 °F	10 °C	Shielding Tape	-40 °C	130 °C	Tin-Plated Copper Foil
3M 1183 C12MMX16,5MM	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Copper Foil, Tin Plated	Date of Manufacture	Silver	Conductive Acrylic	Copper Foil				60 Months									0.47 in	12 mm
3M 1183-3/4X18YD		54 ft	16.5 m						Date of Manufacture		Conductive, Single Sided		0.75 in		19.1 mm	60 Months	0.003 "	0.07 mm	27 °C, 80 °F	10 °C	Shielding Tape	-40 °C	130 °C	Tin-Plated Copper Foil
3M 1183-23X18YD	EMI/RFI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.036 mm	Copper Foil	Date of Manufacture	Silver	Acrylic	Copper Foil				60 Months			27 °C, 80 °F	10 °C					23 in	584.2 mm	0.0013 "	1.3 mils	0.033 mm	0.068 mm	0.0027 "	2.7 mils
3M 1183LOG 23"X18YD	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Copper Foil, Tin Plated	Date of Manufacture	Silver	Conductive Acrylic	Copper Foil				60 Months									23 in	584.2 mm
3M 1183 7.7X18YD	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Copper Foil, Tin Plated	Date of Manufacture	Silver	Conductive Acrylic	Copper Foil				60 Months									7.7 in	195.58 mm
3M 1183 1"		54 ft	16.5 m, 91.44 cm						Date of Manufacture		Conductive, Single Sided				25.4 mm	60 Months	0.003 "	0.07 mm	27 °C, 80 °F	10 °C	Shielding Sheet, Shielding Tape	-40 °C	130 °C	Tin-Plated Copper Foil	1 in								36 "
3M 1183 41MM X 50M	EMI Shielding	164 ft	50 m	54.7 yds	0.0014 in	1.4 mils	0.035 mm	Copper Foil, Tin Plated	Date of Manufacture	Silver	Conductive Acrylic	Copper Foil	1.63 in, 41.28 mm			60 Months																		1 5/8
