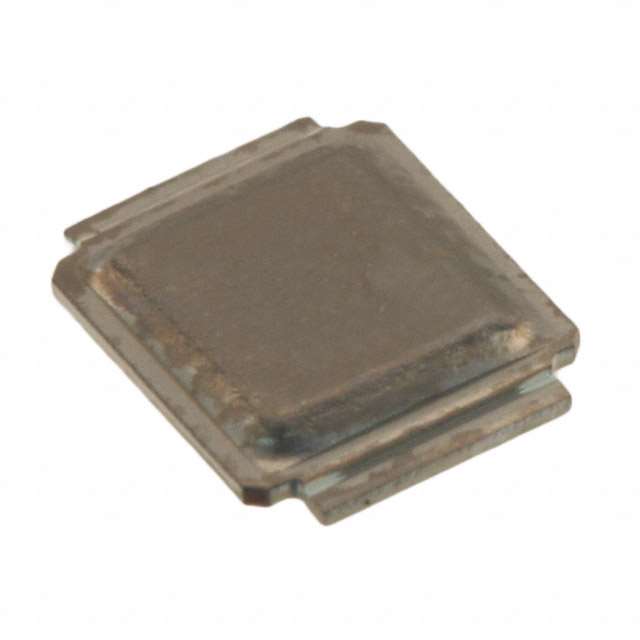

BSB104N08NP3GXUSA1

Infineon Technologies

OPTIMOS™ 3 N-CHANNEL POWER MOSFET 80 V ; DIRECTFET™ M PACKAGE; 10.4 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSB104N08NP3GXUSA1

Infineon Technologies

OPTIMOS™ 3 N-CHANNEL POWER MOSFET 80 V ; DIRECTFET™ M PACKAGE; 10.4 MOHM;

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSB104N08NP3GXUSA1

Current - Continuous Drain (Id) @ 25°C	50 A, 13 A
Drain to Source Voltage (Vdss)	80 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	31 nC
Input Capacitance (Ciss) (Max) @ Vds	2100 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-WDSON
Power Dissipation (Max)	2.8 W, 42 W
Rds On (Max) @ Id, Vgs	10.4 mOhm
Supplier Device Package	CanPAK M™, MG-WDSON-2
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.5 V

BSB104 Series

Part	Vgs (Max)	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	FET Type	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Technology	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Mounting Type	Package / Case
Infineon Technologies BSB104N08NP3GXUSA1	20 V	2.8 W 42 W	31 nC	3.5 V	N-Channel	13 A 50 A	80 V	MOSFET (Metal Oxide)	CanPAK M™ MG-WDSON-2	150 °C	-40 °C	10 V	2100 pF	10.4 mOhm	Surface Mount	3-WDSON

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.62

Description

General part information

BSB104 Series

OptiMOS™ is the market leader in highly efficient solutions for power generation (e.g. solar micro inverter), power supply (e.g. server and telecom) and power consumption (e.g. electric vehicle).
