MCP3551T-E/MS

Active

Microchip Technology

ADC, 22BIT, 14SPS, -40 TO 125DEG C

Find alt

Alpha

MCP3551T-E/MS

Active

Microchip Technology

ADC, 22BIT, 14SPS, -40 TO 125DEG C

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MCP3551 Series

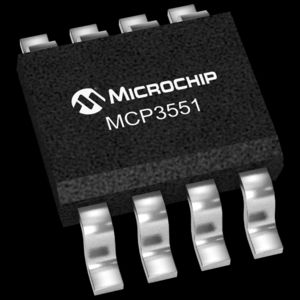

The Microchip Technology Inc. MCP355X devices are 2.7V to 5.5V low-power, 22-bit delta-sigma A/D converters. The devices offer output noise as low as 2.5 µVrms with a total unadjusted error of less than 10 ppm. The family exhibits less than 6 ppm integral non-linearity (INL) error, 3 µV offset error, and 2 ppm full scale error. The MCP355X devices provide high accuracy and low noise performance for applications where sensor measurements such as pressure, temperature, and humidity are performed. With the internal oscillator and high oversampling rate, minimal external components are required for high accuracy applications. The fully differential analog inputs make it compatible with a wide variety of sensor and measurement applications. The MCP355X devices operate from -40°C to +125°C and are available in the space-saving 8-pin MSOP and SOIC packages.

Technical Specifications

Parameters and characteristics for this part

Specification	MCP3551T-E/MS

Architecture	Sigma-Delta
Configuration	ADC
Data Interface	SPI
Input Type	Differential
Mounting Type	Surface Mount
Number of A/D Converters	1 count
Number of Bits	22 bits
Number of Inputs	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package Length	0.118 in
Package Name	8-TSSOP, 8-MSOP, 8-MSOP
Package Width	3 mm
Reference Type	External
Sampling Rate (Per Second)	14 Hz
Voltage - Supply, Analog (Max)	5.5 V
Voltage - Supply, Analog (Min)	2.7 V
Voltage - Supply, Digital (Max)	5.5 V
Voltage - Supply, Digital (Min)	2.7 V

MCP3551 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Number of A/D Converters	Number of Bits	Input Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Number of Inputs	Configuration	Architecture	Mounting Type	Package Width	Package Name	Package Length	Reference Type	Sampling Rate (Per Second)	Data Interface	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Supplied Contents	Input Range	Contents	Utilized IC / Part
Microchip Technology MCP3551T-E/MS	125 °C	-40 °C	1 count	22 bits	Differential	2.7 V	5.5 V	1	ADC	Sigma-Delta	Surface Mount	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	External	14 Hz	SPI	2.7 V	5.5 V
Microchip Technology MCP3551T-E/SN	125 °C	-40 °C	1 count	22 bits	Differential	2.7 V	5.5 V	1	ADC	Sigma-Delta	Surface Mount	3.9 mm	8-SOIC	0.154 in	External	14 Hz	SPI	2.7 V	5.5 V

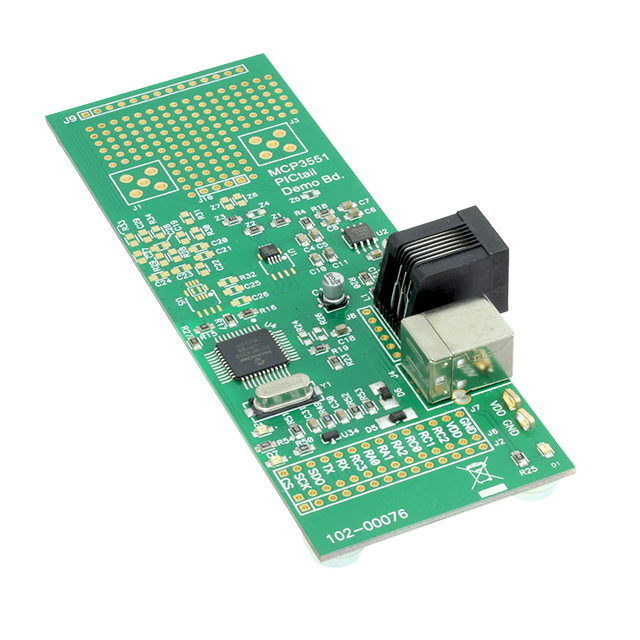

Microchip Technology MCP3551DM-PCTL			1 count	22 bits												14 Hz	Serial			Board(s)	±VREF	Board	MCP3551
Microchip Technology MCP3551-E/MS	125 °C	-40 °C	1 count	22 bits	Differential	2.7 V	5.5 V	1	ADC	Sigma-Delta	Surface Mount	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	External	14 Hz	SPI	2.7 V	5.5 V
Microchip Technology MCP3551-E/SN	125 °C	-40 °C	1 count	22 bits	Differential	2.7 V	5.5 V	1	ADC	Sigma-Delta	Surface Mount	3.9 mm	8-SOIC	0.154 in	External	14 Hz	SPI	2.7 V	5.5 V
