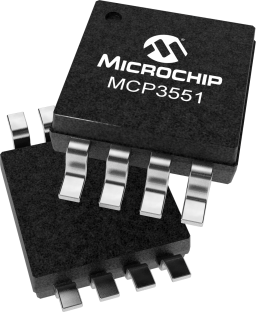

MCP3551 Series

Catalog

ADC, 22BIT, 14SPS, -40 TO 125DEG C

Part	Operating Temperature (Max)	Operating Temperature (Min)	Number of A/D Converters	Number of Bits	Input Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Number of Inputs	Configuration	Architecture	Mounting Type	Package Width	Package Name	Package Length	Reference Type	Sampling Rate (Per Second)	Data Interface	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Supplied Contents	Input Range	Contents	Utilized IC / Part
Microchip Technology MCP3551T-E/MS	125 °C	-40 °C	1 count	22 bits	Differential	2.7 V	5.5 V	1	ADC	Sigma-Delta	Surface Mount	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	External	14 Hz	SPI	2.7 V	5.5 V
Microchip Technology MCP3551T-E/SN	125 °C	-40 °C	1 count	22 bits	Differential	2.7 V	5.5 V	1	ADC	Sigma-Delta	Surface Mount	3.9 mm	8-SOIC	0.154 in	External	14 Hz	SPI	2.7 V	5.5 V
Microchip Technology MCP3551DM-PCTL			1 count	22 bits												14 Hz	Serial			Board(s)	±VREF	Board	MCP3551
Microchip Technology MCP3551-E/MS	125 °C	-40 °C	1 count	22 bits	Differential	2.7 V	5.5 V	1	ADC	Sigma-Delta	Surface Mount	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	External	14 Hz	SPI	2.7 V	5.5 V
Microchip Technology MCP3551-E/SN	125 °C	-40 °C	1 count	22 bits	Differential	2.7 V	5.5 V	1	ADC	Sigma-Delta	Surface Mount	3.9 mm	8-SOIC	0.154 in	External	14 Hz	SPI	2.7 V	5.5 V
