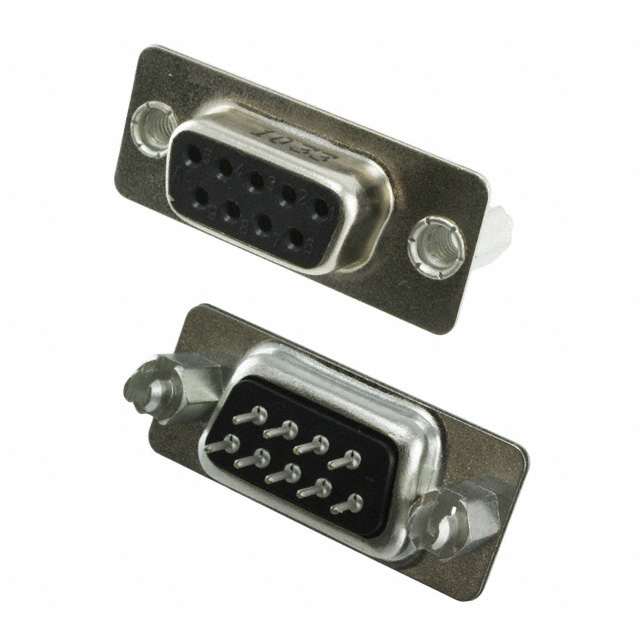

10090098-S094LLF

Obsolete

Amphenol ICC (FCI)

DSUB STR 9POS SOCKET

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

DSUB STR 9POS SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	10090098-S094LLF

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side (M3)
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

Part	Color	Number of Rows	Dielectric Material	Flange Feature	Mounting Type	Connector Type	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Voltage Rating	Material Flammability Rating	Shell Material, Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish	Connector Style	Shell Size, Connector Layout
Amphenol ICC (FCI) 10090098-S094VLF	Black	2	Thermoplastic Glass Filled	Board Side (4-40) Mating Side Female Screwlock (4-40)	Through Hole	Receptacle Female Sockets	Copper Alloy	DE E	1	Solder	250 VDC	UL94 V-0	Steel Tin-Nickel Plated	5 A	Flash	Signal	105 ░C	-55 °C	9	Gold	D-Sub
Amphenol ICC (FCI) 10090098-S094LLF	Black	2	Thermoplastic Glass Filled	Board Side (M3)	Through Hole	Receptacle Female Sockets		DE E	1	Solder	250 VDC		Steel Tin-Nickel Plated	5 A	Flash	Signal	105 ░C	-55 °C	9	Gold	D-Sub
Amphenol ICC (FCI) 10090098-S374XLF	Black	2	Thermoplastic Glass Filled	4-40 Board Side	Through Hole	Receptacle Female Sockets	Copper Alloy			Solder	250 VDC	UL94 V-0	Nickel Plated Steel	5 A	Flash	Signal	105 ░C	-55 °C	37	Gold	D-Sub	4 (DC C)
Amphenol ICC (FCI) 10090098-S374VLF	Black	2	Thermoplastic Glass Filled	Board Side (4-40) Mating Side Female Screwlock (4-40)	Through Hole	Receptacle Female Sockets	Copper Alloy			Solder	250 VDC	UL94 V-0	Steel Tin-Nickel Plated	5 A	Flash	Signal	105 ░C	-55 °C	37	Gold	D-Sub	4 (DC C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
