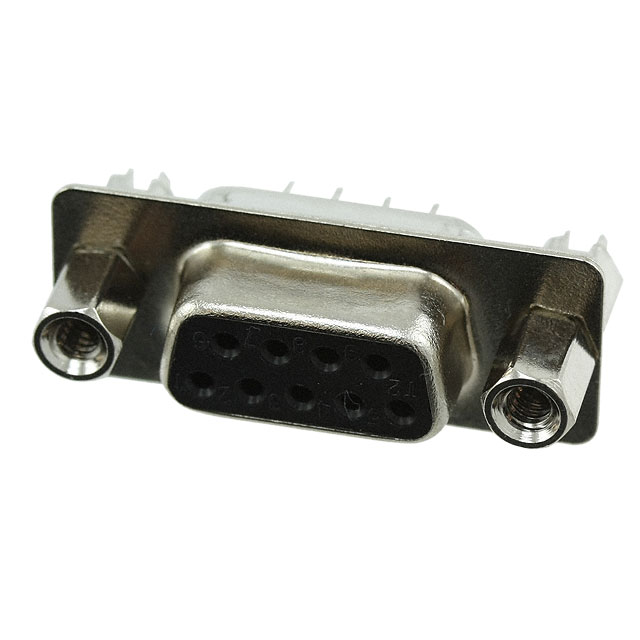

10090098-S094VLF

Obsolete

Amphenol ICC (FCI)

CONN D-SUB RCPT 9POS VERT SLDR

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN D-SUB RCPT 9POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	10090098-S094VLF

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

Part	Color	Number of Rows	Dielectric Material	Flange Feature	Mounting Type	Connector Type	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Voltage Rating	Material Flammability Rating	Shell Material, Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish	Connector Style	Shell Size, Connector Layout
Amphenol ICC (FCI) 10090098-S094VLF	Black	2	Thermoplastic Glass Filled	Board Side (4-40) Mating Side Female Screwlock (4-40)	Through Hole	Receptacle Female Sockets	Copper Alloy	DE E	1	Solder	250 VDC	UL94 V-0	Steel Tin-Nickel Plated	5 A	Flash	Signal	105 ░C	-55 °C	9	Gold	D-Sub
Amphenol ICC (FCI) 10090098-S094LLF	Black	2	Thermoplastic Glass Filled	Board Side (M3)	Through Hole	Receptacle Female Sockets		DE E	1	Solder	250 VDC		Steel Tin-Nickel Plated	5 A	Flash	Signal	105 ░C	-55 °C	9	Gold	D-Sub
Amphenol ICC (FCI) 10090098-S374XLF	Black	2	Thermoplastic Glass Filled	4-40 Board Side	Through Hole	Receptacle Female Sockets	Copper Alloy			Solder	250 VDC	UL94 V-0	Nickel Plated Steel	5 A	Flash	Signal	105 ░C	-55 °C	37	Gold	D-Sub	4 (DC C)
Amphenol ICC (FCI) 10090098-S374VLF	Black	2	Thermoplastic Glass Filled	Board Side (4-40) Mating Side Female Screwlock (4-40)	Through Hole	Receptacle Female Sockets	Copper Alloy			Solder	250 VDC	UL94 V-0	Steel Tin-Nickel Plated	5 A	Flash	Signal	105 ░C	-55 °C	37	Gold	D-Sub	4 (DC C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources
