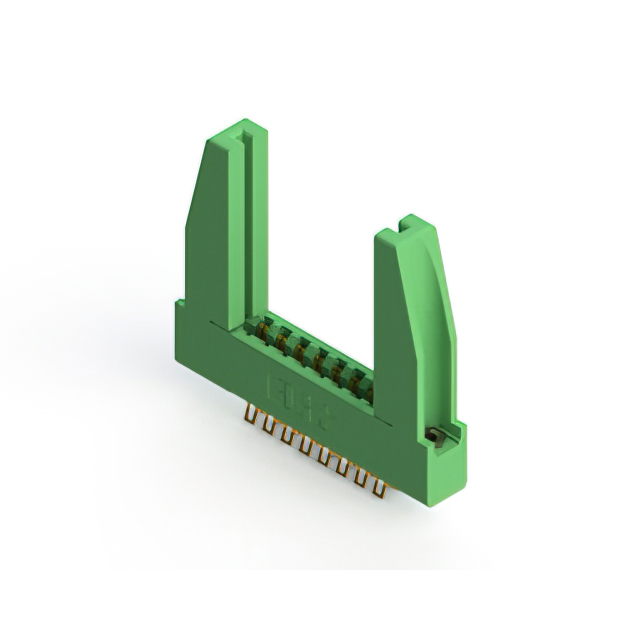

315-016-555-278
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 315-016-555-278 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
315-016 Series
| Part | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Termination | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Gender | Material - Insulation | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Panel Mount Through Hole | Solder | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |
EDAC Inc. | 2 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Solder Eyelet(s) | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | ||
EDAC Inc. | 2 | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Solder | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Card Extender | |||
EDAC Inc. | 2 | Flush Mount M3 Threaded Insert Top Opening | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Solder Eyelet(s) | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | ||||
EDAC Inc. | 2 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Solder Eyelet(s) | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | ||
EDAC Inc. | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Solder | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |||
EDAC Inc. | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Solder | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |||
EDAC Inc. | 2 | Flush Mount M3 Threaded Insert Top Opening | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Panel Mount Through Hole | Solder | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |||
EDAC Inc. | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Solder | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | |||
EDAC Inc. | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 16 | Green | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Solder | 8 | 8 | 8 | Gold | Semi Bellows | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.41 | |
Description
General part information
315-016 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
