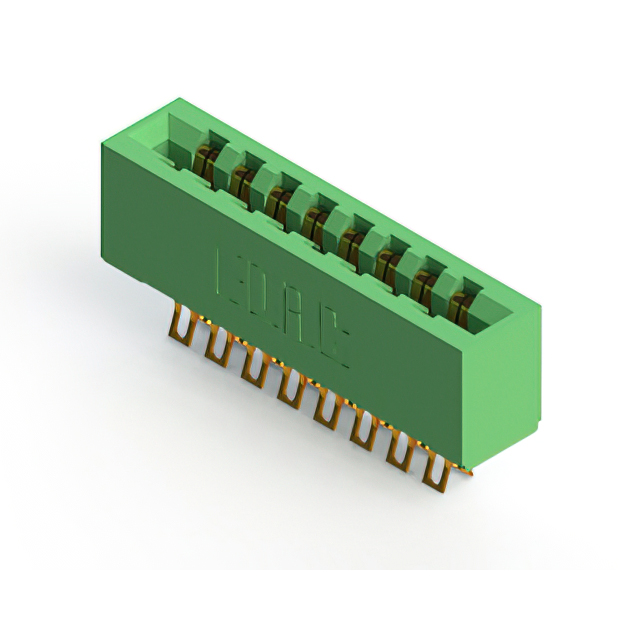

Specification	315-016-555-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	16, 8
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

315-016 Series

Part	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Termination	Contact Finish	Number of Positions	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Card Thickness (Min)	Card Thickness (Max)	Card Type	Color	Gender	Number of Rows	Contact Material	Contact Type	Read Out	Material - Insulation	Termination Rows	Features
EDAC Inc. 315-016-520-204	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Solder	Gold	8 16	0.156 in	-40 °C	105 °C	Panel Mount Through Hole	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows
EDAC Inc. 315-016-555-203	0.116 in	Floating Bobbin Flush Mount	10 Ąin	Solder	Gold	8 16	0.156 in	-40 °C	105 °C	Board Edge Straddle Mount	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows	Card Extender
EDAC Inc. 315-016-500-202	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	Solder Eyelet(s)	Gold	8 16	0.156 in	-40 °C	105 °C	Panel Mount	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows
EDAC Inc. 315-016-555-201			10 Ąin	Solder	Gold	8 16	0.156 in	-40 °C	105 °C	Board Edge Straddle Mount	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows	Card Extender
EDAC Inc. 315-016-500-207		Flush Mount M3 Threaded Insert Top Opening	10 Ąin	Solder Eyelet(s)	Gold	8 16	0.156 in	-40 °C	105 °C	Panel Mount	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows
EDAC Inc. 315-016-500-204	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Solder Eyelet(s)	Gold	8 16	0.156 in	-40 °C	105 °C	Panel Mount	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows
EDAC Inc. 315-016-555-278		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Solder	Gold	8 16	0.156 in	-40 °C	105 °C	Board Edge Straddle Mount	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows	Card Extender Card Guides
EDAC Inc. 315-016-555-258		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Solder	Gold	8 16	0.156 in	-40 °C	105 °C	Board Edge Straddle Mount	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows	Card Extender Card Guides
EDAC Inc. 315-016-521-207		Flush Mount M3 Threaded Insert Top Opening	10 Ąin	Solder	Gold	8 16	0.156 in	-40 °C	105 °C	Panel Mount Through Hole	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows
EDAC Inc. 315-016-555-268		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Solder	Gold	8 16	0.156 in	-40 °C	105 °C	Board Edge Straddle Mount	0.054 in	0.07 in	Dual Edge Non Specified	Green	Female	2	Copper Alloy	Semi Bellows	Dual	Polyester Thermoplastic	2 rows	Card Extender Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

315-016-555-201 | Datasheet
