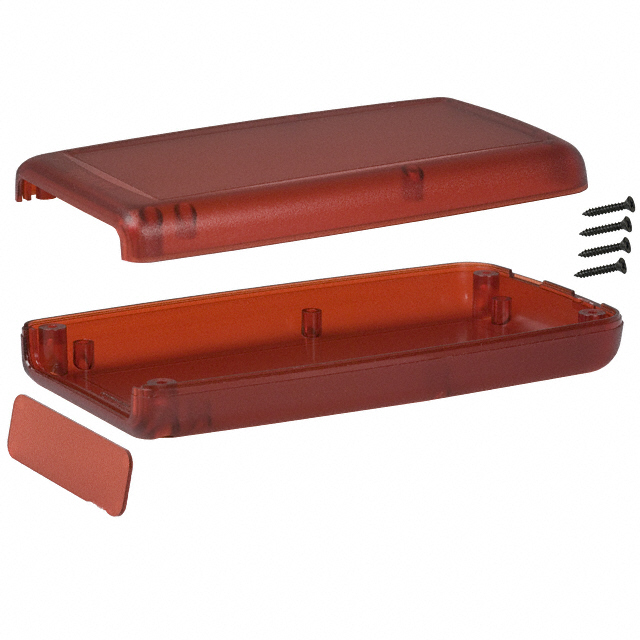

Specification	H65,TRRD

Area (L x W)	13.6 in²
Color	Translucent - Red
Container Type	Box
Design	Split Sides, End Panel(s), Hand Held
Features	PCB Supports
Height	0.94 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension Length	4.94 in
Size / Dimension Width	69.85 mm
Thickness	0.08 in
Weight	0.11 lb

H65 Series

Part	Weight	Ratings	Color	Thickness	Size / Dimension Width	Size / Dimension Length	Material	Design	Area (L x W)	Container Type	Features	Height	Material Flammability Rating
Serpac H65AA,GY	0.11 lb	IP40	Gray	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	AA Battery Compartment PCB Supports	0.94 in	UL94 HB
Serpac H65AAPC,GY	0.117 lb	IP40	Gray	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	AA Battery Compartment PCB Supports Pocket Clip	0.94 in	UL94 HB
Serpac H65AA,TRGY	0.11 lb	IP40	Translucent - Gray	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	AA Battery Compartment PCB Supports	0.94 in	UL94 HB
Serpac H65AAPC,AL	0.117 lb	IP40	Almond	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	AA Battery Compartment PCB Supports Pocket Clip	0.94 in	UL94 HB
Serpac H65AA,BK	0.11 lb	IP40	Black	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	AA Battery Compartment PCB Supports	0.94 in	UL94 HB
Serpac H65AC,GY	0.11 lb	IP40	Gray	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	Battery Door PCB Supports	0.94 in	UL94 HB
Serpac H65,TRRD	0.11 lb	IP40	Translucent - Red	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	PCB Supports	0.94 in	UL94 HB
Serpac H65AA,TRRD	0.11 lb	IP40	Translucent - Red	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	AA Battery Compartment PCB Supports	0.94 in	UL94 HB
Serpac H65,TRBL	0.11 lb	IP40	Translucent - Blue	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	PCB Supports	0.94 in	UL94 HB
Serpac H65AC,BK	0.11 lb	IP40	Black	0.08 in	69.85 mm	4.94 in	ABS Plastic	End Panel(s) Hand Held Split Sides	13.6 in²	Box	Battery Door PCB Supports	0.94 in	UL94 HB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

H65,TRRD | Datasheet
