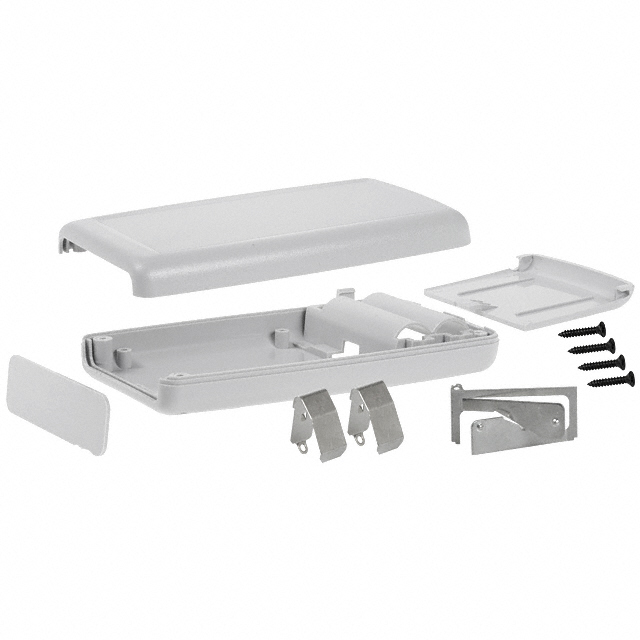

H65AA,GY

Active

Serpac

BOX ABS GRAY 4.94"L X 2.75"W

Deep-Dive with AI

Search across all available documentation for this part.

H65AA,GY

Active

Serpac

BOX ABS GRAY 4.94"L X 2.75"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H65AA,GY

Area (L x W)	13.6 in˛
Area (L x W)	88 cm²
Color	Gray
Container Type	Box
Features	PCB Supports, AA, Battery Compartment
Height [z]	23.88 mm
Height [z]	0.94 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	125.48 mm, 4.94 "
Size / Dimension [y]	69.85 mm
Thickness	2.03 mm
Thickness	0.08 "
Weight	0.11 lb
Weight	49.9 g

H65 Series

Part	Material Flammability Rating	Color	Area (L x W)	Area (L x W)	Material	Size / Dimension [y]	Size / Dimension [x]	Container Type	Height [z]	Height [z]	Weight	Weight	Features	Thickness	Thickness	Ratings
Serpac H65AA,GY	UL94 HB	Gray	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.11 lb	49.9 g	AA Battery Compartment PCB Supports	2.03 mm	0.08 "	IP40
Serpac H65AAPC,GY	UL94 HB	Gray	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.117 lb	53.07 g	AA Battery Compartment PCB Supports Pocket Clip	2.03 mm	0.08 "	IP40
Serpac H65AA,TRGY	UL94 HB	Translucent - Gray	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.11 lb	49.9 g	AA Battery Compartment PCB Supports	2.03 mm	0.08 "	IP40
Serpac H65AAPC,AL	UL94 HB	Almond	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.117 lb	53.07 g	AA Battery Compartment PCB Supports Pocket Clip	2.03 mm	0.08 "	IP40
Serpac H65AA,BK	UL94 HB	Black	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.11 lb	49.9 g	AA Battery Compartment PCB Supports	2.03 mm	0.08 "	IP40
Serpac H65AC,GY	UL94 HB	Gray	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.11 lb	49.9 g		2.03 mm	0.08 "	IP40
Serpac H65,TRRD	UL94 HB	Translucent - Red	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.11 lb	49.9 g	PCB Supports	2.03 mm	0.08 "	IP40
Serpac H65AA,TRRD	UL94 HB	Translucent - Red	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.11 lb	49.9 g	AA Battery Compartment PCB Supports	2.03 mm	0.08 "	IP40
Serpac H65,TRBL	UL94 HB	Translucent - Blue	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.11 lb	49.9 g	PCB Supports	2.03 mm	0.08 "	IP40
Serpac H65AC,BK	UL94 HB	Black	13.6 in˛	88 cm²	Plastic ABS	69.85 mm	4.94 " 125.48 mm	Box	23.88 mm	0.94 in	0.11 lb	49.9 g		2.03 mm	0.08 "	IP40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.79
		5	$ 7.87
		10	$ 7.54
		25	$ 7.29
		50	$ 7.20
		100	$ 7.14
		250	$ 7.09
		500	$ 7.08
		1000	$ 7.07

Description

General part information

H65 Series

Box Plastic, ABS Gray Hand Held, Split Sides and End Panel(s) 4.940" L x 2.750" W (125.48mm x 69.85mm) X 0.940" (23.88mm)
