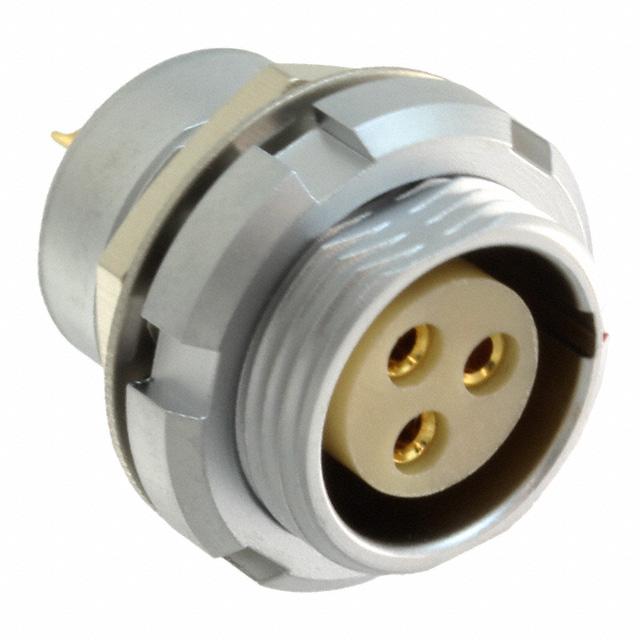

Specification	822B003-203R001

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Material	Copper Alloy
Current Rating	17 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyphenylene Sulfide, PPS
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	3
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	800 V

822B Series

...

Part	Current Rating	Fastening Type	Contact Finish - Mating	Number of Positions	Shielding	Mounting Feature	Termination	Contact Finish Thickness - Mating	Color	Contact Material	Connector Type	Primary Material	Voltage Rating	Insert Material	Shell Material	Mounting Type	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Shell Finish	Cable Opening (Min)	Cable Opening (Max)	Plating	Backshell Material	Features	Applications	Cable Opening
NorComp Inc. 822B004-203R001	15 A	Push-Pull	Gold	4	Shielded	Bulkhead Front Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Female Sockets Receptacle	Metal	610 V	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel
NorComp Inc. 822B010-203R001	8 A	Push-Pull	Gold	10	Shielded	Bulkhead Front Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Female Sockets Receptacle	Metal	500 V	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel
NorComp Inc. 822B014-273L001	6.5 A	Push-Pull	Gold	14	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	380 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.366 in	0.402 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B016-273L001	6 A	Push-Pull	Gold	16	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	315 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.366 in	0.402 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B016-273L601	6 A	Push-Pull	Gold	16	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	315 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.209 in	0.244 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B003-273L001	17 A	Push-Pull	Gold	3	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	800 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.366 in	0.402 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B019-203RF01		Push-Pull	Gold	19	Shielded	Bulkhead Rear Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Female Sockets Receptacle	Metal	280 VAC	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel						Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement
NorComp Inc. 822B014-273L701	6.5 A	Push-Pull	Gold	14	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	380 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.248 in	0.283 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B010-103R001	8 A	Push-Pull	Gold	10	Shielded	Bulkhead Rear Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Male Pins Plug	Metal	500 V	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel							0.531 in
NorComp Inc. 822B004-203RF01		Push-Pull	Gold	4	Shielded	Bulkhead Rear Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Female Sockets Receptacle	Metal	610 V	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel						Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement
