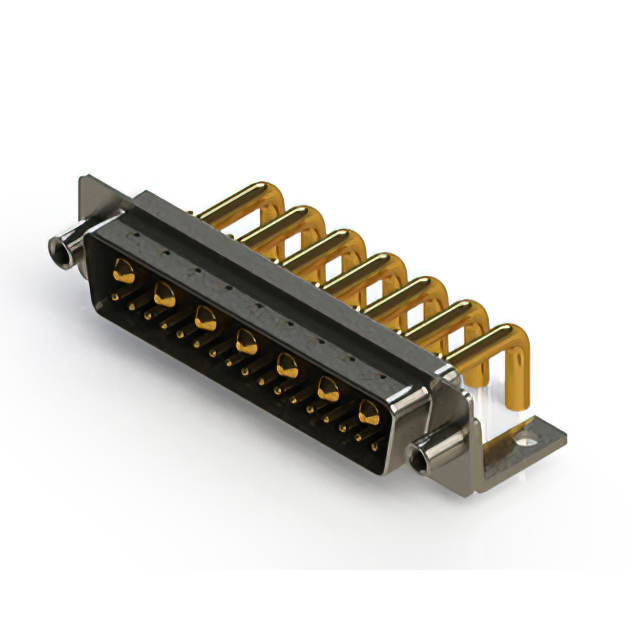

CONN D-SUB PLUG 24POS R/A SLDR

629-24W7250-3NE

Active

EDAC Inc.

CONN D-SUB PLUG 24POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

629-24W Series

24 (17 + 7 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	629-24W7250-3NE

Backset Spacing	0.37 in
Color	Black
Connector Layout	D, DD
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	30A, 5A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Mating Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions (Normal)	17
Number of Positions (Power)	7
Number of Positions (Total)	24
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	24W7
Shell Material	Steel
Shell Size	5
Termination	Solder
Voltage Rating	125 V

629-24W Series

...

Part	Shell Size	Part Code	Connector Layout	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Finish	Material Flammability Rating	Flange Feature	Number of Rows	Current Rating Options	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Mounting Type	Connector Style	Backset Spacing	Connector Type	Finish	Shell Material	Termination	Contact Type	Features	Voltage Rating	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Dielectric Material	Position Types	Number of Positions (Standard)	Number of Positions (Special)
EDAC Inc. 629-24W7250-3TB	5	24W7	D DD	0	Flash	Flash	Gold	UL94 V-0	Housing Shell (M3)	2	30A 5A	24	17	7	Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Tin Plated	Steel	Solder	Power Signal	Board Lock Grounding Indents Mounting Brackets	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic
EDAC Inc. 629-24W7250-3T1	5	24W7	D DD	0	Flash	Flash	Gold	UL94 V-0	Housing Shell (Unthreaded)	2	30A 5A	24	17	7	Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Tin Plated	Steel	Solder	Power Signal	Grounding Indents Shielded	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic
EDAC Inc. 629-24W7250-3NE	5	24W7	D DD	0	Flash	Flash	Gold	UL94 V-0	Mating Side (M3)	2	30A 5A	24	17	7	Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Nickel Plated	Steel	Solder	Power Signal	Grounding Indents Mounting Brackets	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic
EDAC Inc. 629-24W7240-5NB	5	24W7	D DD	0	Flash	Flash	Gold	UL94 V-0	Housing Shell (M3)	2		24			Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Nickel Plated	Steel	Solder	Coax Signal	Board Lock Grounding Indents Mounting Brackets	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic	Coax	17	7
EDAC Inc. 629-24W7240-5N6	5	24W7	D DD	0	Flash	Flash	Gold	UL94 V-0	Mating Side (4-40)	2		24			Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Nickel Plated	Steel	Solder	Coax Signal	Board Lock Grounding Indents	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic	Coax	17	7
EDAC Inc. 629-24W7240-7TC	5	24W7	D DD	0	Flash	Flash	Gold	UL94 V-0	Housing Shell (M3)	2		24			Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Tin Plated	Steel	Solder	Coax Signal	Grounding Indents Mounting Brackets	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic	Coax	17	7
EDAC Inc. 629-24W7650-1T1	5	24W7	D DD	30 µin			Gold	UL94 V-0	Housing Shell (Unthreaded)	2	10A 5A	24	17	7	Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Tin Plated	Steel	Solder	Power Signal	Grounding Indents Shielded	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic
EDAC Inc. 629-24W7240-5T5	5	24W7	D DD	0	Flash	Flash	Gold	UL94 V-0	Mating Side (4-40)	2		24			Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Tin Plated	Steel	Solder	Coax Signal	Board Lock Grounding Indents Mounting Brackets	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic	Coax	17	7
EDAC Inc. 629-24W7250-2T6	5	24W7	D DD	0	Flash	Flash	Gold	UL94 V-0	Mating Side (4-40)	2	20A 5A	24	17	7	Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Tin Plated	Steel	Solder	Power Signal	Board Lock Grounding Indents	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic
EDAC Inc. 629-24W7650-1NC	5	24W7	D DD	30 µin			Gold	UL94 V-0	Housing Shell (M3)	2	10A 5A	24	17	7	Right Angle Through Hole	Combo D-Sub	0.37 in	Male Pins Plug	Nickel Plated	Steel	Solder	Power Signal	Grounding Indents Mounting Brackets	125 V	Black	125 °C	-55 °C	Copper Alloy	Polyester Thermoplastic
