629-24W7240-5T5

Active

EDAC Inc.

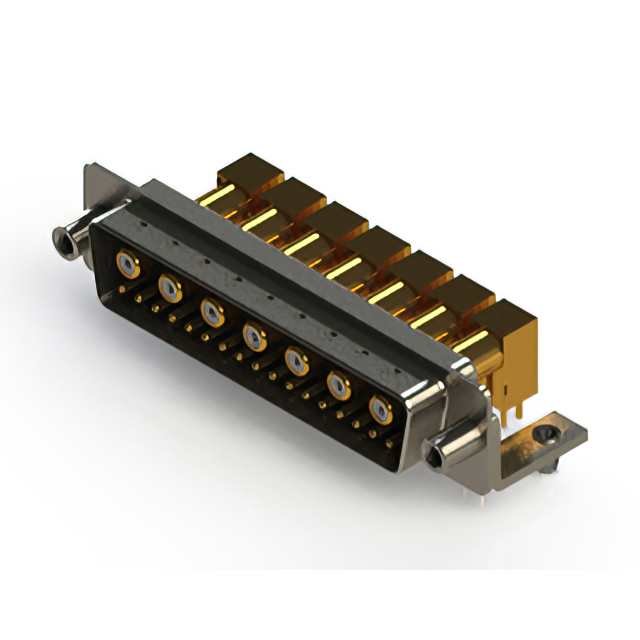

CONN D-SUB PLUG 24POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-24W7240-5T5

Active

EDAC Inc.

CONN D-SUB PLUG 24POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-24W7240-5T5

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	17
Number of Positions [custom]	7
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D) - 24W7
Termination	Solder
Voltage Rating	125 VDC

629-24W Series

...

Part	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Connector Type	Number of Positions	Dielectric Material	Features	Material Flammability Rating	Contact Finish	Color	Connector Style	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Flange Feature	Termination	Mounting Type	Contact Type	Number of Rows	Contact Finish Thickness	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 629-24W7250-3TB	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug	24	Polyester Thermoplastic	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Gold	Black	Combo D-Sub	5 A 30 A	Copper Alloy	-55 °C	125 °C	125 VDC	Housing/Shell (M3)	Solder	Through Hole Right Angle	Signal and Power	2	Flash
EDAC Inc. 629-24W7250-3T1	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug	24	Polyester Thermoplastic	Grounding Indents Shielded	UL94 V-0	Gold	Black	Combo D-Sub	5 A 30 A	Copper Alloy	-55 °C	125 °C	125 VDC	Housing/Shell (Unthreaded)	Solder	Through Hole Right Angle	Signal and Power	2	Flash
EDAC Inc. 629-24W7250-3NE	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug	24	Polyester Thermoplastic	Grounding Indents Mounting Brackets	UL94 V-0	Gold	Black	Combo D-Sub	5 A 30 A	Copper Alloy	-55 °C	125 °C	125 VDC	M3	Solder	Through Hole Right Angle	Signal and Power	2	Flash	Nickel Plated Steel
EDAC Inc. 629-24W7240-5NB	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug		Polyester Thermoplastic	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Gold	Black	Combo D-Sub		Copper Alloy	-55 °C	125 °C	125 VDC	Housing/Shell (M3)	Solder	Through Hole Right Angle	Coax Signal	2	Flash	Nickel Plated Steel	17	7
EDAC Inc. 629-24W7240-5N6	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug		Polyester Thermoplastic	Board Lock Grounding Indents	UL94 V-0	Gold	Black	Combo D-Sub		Copper Alloy	-55 °C	125 °C	125 VDC	4-40	Solder	Through Hole Right Angle	Coax Signal	2	Flash	Nickel Plated Steel	17	7
EDAC Inc. 629-24W7240-7TC	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug		Polyester Thermoplastic	Grounding Indents Mounting Brackets	UL94 V-0	Gold	Black	Combo D-Sub		Copper Alloy	-55 °C	125 °C	125 VDC	Housing/Shell (M3)	Solder	Through Hole Right Angle	Coax Signal	2	Flash		17	7
EDAC Inc. 629-24W7650-1T1	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug	24	Polyester Thermoplastic	Grounding Indents Shielded	UL94 V-0	Gold	Black	Combo D-Sub		Copper Alloy	-55 °C	125 °C	125 VDC	Housing/Shell (Unthreaded)	Solder	Through Hole Right Angle	Signal and Power	2					0.76 Ám	30 Áin	10A 5A
EDAC Inc. 629-24W7240-5T5	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug		Polyester Thermoplastic	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Gold	Black	Combo D-Sub		Copper Alloy	-55 °C	125 °C	125 VDC	4-40	Solder	Through Hole Right Angle	Coax Signal	2	Flash		17	7
EDAC Inc. 629-24W7250-2T6	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug	24	Polyester Thermoplastic	Board Lock Grounding Indents	UL94 V-0	Gold	Black	Combo D-Sub	5 A 20 A	Copper Alloy	-55 °C	125 °C	125 VDC	4-40	Solder	Through Hole Right Angle	Signal and Power	2	Flash
EDAC Inc. 629-24W7650-1NC	9.4 mm	0.37 in	5 (DD D) - 24W7	Male Pins Plug	24	Polyester Thermoplastic	Grounding Indents Mounting Brackets	UL94 V-0	Gold	Black	Combo D-Sub		Copper Alloy	-55 °C	125 °C	125 VDC	Housing/Shell (M3)	Solder	Through Hole Right Angle	Signal and Power	2		Nickel Plated Steel			0.76 Ám	30 Áin	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 15.47

Description

General part information

629-24W Series

24 (17 + 7 Coax) Position D-Sub, Combo Plug, Male Pins Connector
