RTE24024

Active

TE Connectivity Potter & Brumfield Relays

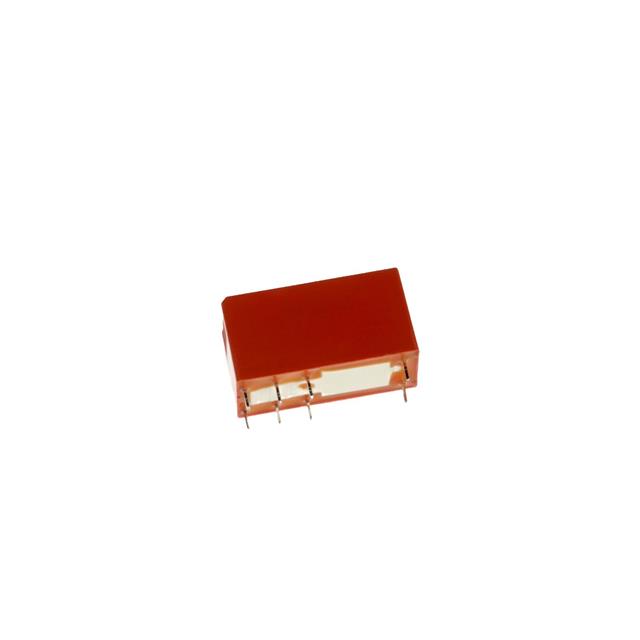

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RTE24024

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTE24024

Approval Agency	cURus, CQC, VDE, CSA
Coil Current	16.7 mA
Coil Insulation	Class F
Coil Resistance	1440 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

RTE240 Series

Part	Contact Material	Must Operate Voltage	Contact Form	Release Time	Coil Type	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Coil Voltage	Relay Type	Must Release Voltage	Seal Rating	Load - Max Switching	Switching Voltage [Max]	Approval Agency	Mounting Type	Termination Style	Contact Rating (Current)	Coil Insulation	Operate Time
TE Connectivity Potter & Brumfield Relays RTE24024	Silver Nickel (AgNi)	16.8 VDC	DPDT (2 Form C)	6 ms	Non Latching	1440 Ohms	85 °C	-40 °C	16.7 mA	24 VDC	General Purpose	2.4 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
TE Connectivity Potter & Brumfield Relays RTE24005	Silver Nickel (AgNi)	3.5 VDC	DPDT (2 Form C)	6 ms	Non Latching	62 Ohms	85 °C	-40 °C	80.6 mA	5 VDC	General Purpose	0.5 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
TE Connectivity Potter & Brumfield Relays RTE24024F	Silver Nickel (AgNi)	16.8 VDC	DPDT (2 Form C)	6 ms	Non Latching	1440 Ohms	85 °C	-40 °C	16.7 mA	24 VDC	General Purpose	2.4 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
TE Connectivity Potter & Brumfield Relays RTE24018	Silver Nickel (AgNi)	12.6 VDC	DPDT (2 Form C)	6 ms	Non Latching	810 Ohms	85 °C	-40 °C	22.2 mA	18 VDC	General Purpose	1.8 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
TE Connectivity Potter & Brumfield Relays 1393243-7	Silver Nickel (AgNi)	14 VDC	DPDT (2 Form C)	6 ms	Non Latching		85 °C	-40 °C		20 VDC	General Purpose	0.2 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
