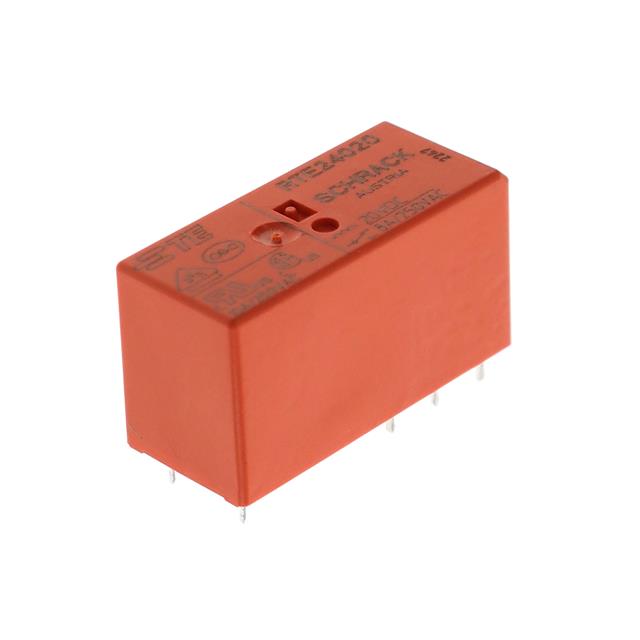

1393243-7
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1393243-7
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1393243-7 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Insulation | Class F |
| Coil Type | Non Latching |
| Coil Voltage | 20 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 14 VDC |
| Must Release Voltage | 0.2 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
RTE240 Series
| Part | Contact Material | Must Operate Voltage | Contact Form | Release Time | Coil Type | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Coil Voltage | Relay Type | Must Release Voltage | Seal Rating | Load - Max Switching | Switching Voltage [Max] | Approval Agency | Mounting Type | Termination Style | Contact Rating (Current) | Coil Insulation | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Potter & Brumfield Relays | Silver Nickel (AgNi) | 16.8 VDC | DPDT (2 Form C) | 6 ms | Non Latching | 1440 Ohms | 85 °C | -40 °C | 16.7 mA | 24 VDC | General Purpose | 2.4 VDC | Sealed - Fully | 3200 VA | 400 VAC | CQC CSA cURus VDE | Through Hole | PC Pin | 8 A | Class F | 8 ms |
TE Connectivity Potter & Brumfield Relays | Silver Nickel (AgNi) | 3.5 VDC | DPDT (2 Form C) | 6 ms | Non Latching | 62 Ohms | 85 °C | -40 °C | 80.6 mA | 5 VDC | General Purpose | 0.5 VDC | Sealed - Fully | 3200 VA | 400 VAC | CQC CSA cURus VDE | Through Hole | PC Pin | 8 A | Class F | 8 ms |
TE Connectivity Potter & Brumfield Relays | Silver Nickel (AgNi) | 16.8 VDC | DPDT (2 Form C) | 6 ms | Non Latching | 1440 Ohms | 85 °C | -40 °C | 16.7 mA | 24 VDC | General Purpose | 2.4 VDC | Sealed - Fully | 3200 VA | 400 VAC | CQC CSA cURus VDE | Through Hole | PC Pin | 8 A | Class F | 8 ms |
TE Connectivity Potter & Brumfield Relays | Silver Nickel (AgNi) | 12.6 VDC | DPDT (2 Form C) | 6 ms | Non Latching | 810 Ohms | 85 °C | -40 °C | 22.2 mA | 18 VDC | General Purpose | 1.8 VDC | Sealed - Fully | 3200 VA | 400 VAC | CQC CSA cURus VDE | Through Hole | PC Pin | 8 A | Class F | 8 ms |
TE Connectivity Potter & Brumfield Relays | Silver Nickel (AgNi) | 14 VDC | DPDT (2 Form C) | 6 ms | Non Latching | 85 °C | -40 °C | 20 VDC | General Purpose | 0.2 VDC | Sealed - Fully | 3200 VA | 400 VAC | CQC CSA cURus VDE | Through Hole | PC Pin | 8 A | Class F | 8 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.36 | |
| 10 | $ 3.81 | |||
| 25 | $ 3.61 | |||
| 50 | $ 3.46 | |||
| 100 | $ 3.32 | |||
| 250 | $ 3.15 | |||
| 500 | $ 3.02 | |||
| 1000 | $ 2.90 | |||
Description
General part information
RTE240 Series
General Purpose Relay DPDT (2 Form C) 20VDC Coil Through Hole
