C90-3101F14S-2P

Active

Harwin Inc.

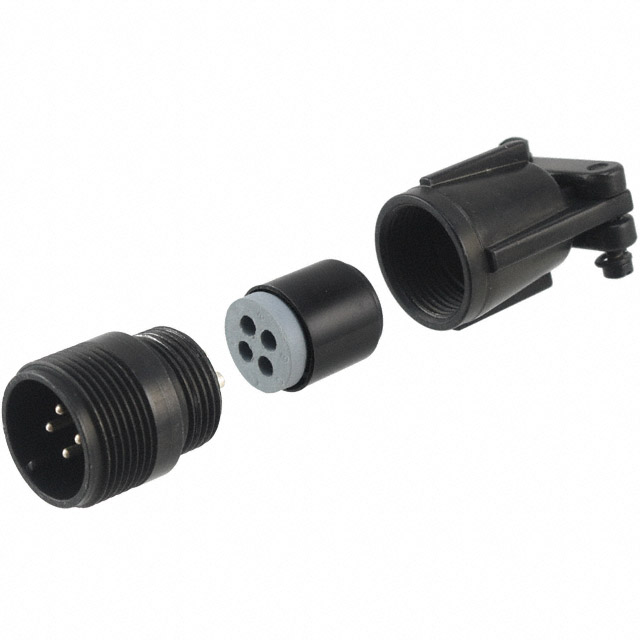

CIRCULAR CONNECTOR, MIL-C-5015 SERIES, RECEPTACLE, 4, PIN, SOLDER, CABLE MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90-25042-14S Datasheet +3

C90-3101F14S-2P

Active

Harwin Inc.

CIRCULAR CONNECTOR, MIL-C-5015 SERIES, RECEPTACLE, 4, PIN, SOLDER, CABLE MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsC90-25042-14S Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C90-3101F14S-2P	C90-3101F Series

Applications	Industrial, Automotive	Industrial, Automotive
Backshell Material, Plating	Black Zinc Cobalt, Aluminum Alloy	Black Zinc Cobalt, Aluminum Alloy
Cable Opening	-	7.14 mm
Cable Opening	-	0.281 in
Cable Opening [custom]	10.3 mm	10.3 mm
Cable Opening [custom]	0.406 in	0.406 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	13 A
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber	Synthetic Rubber
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	2 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Black Zinc Cobalt Alloy	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	14S-2	10SL-4, 14S-6, 10SL-3, 14S-2
Shielding	Unshielded	Unshielded
Voltage Rating	250 VDC, 200 VAC	200 - 700 VDC

C90-3101F Series

CIRCULAR CONNECTOR, CABLE MOUNT RECEPTACLE, 2 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Features	Orientation	Current Rating (Amps)	Insert Material	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Shell Size - Insert	Connector Type	Contact Material	Color	Shell Finish	Shielding	Applications	Number of Positions	Primary Material	Backshell Material, Plating	Contact Finish - Mating	Mounting Type	Shell Material	Cable Opening [custom]	Cable Opening [custom]
Harwin Inc. C90-3101F10SL-4S	-55 °C	125 °C	500 VAC, 700 VDC	Backshell, Cable Clamp	Keyed	13 A	Synthetic Rubber	7.14 mm	0.281 in	IP67 - Dust Tight, Waterproof	10SL-4	Receptacle, Female Sockets	Copper Alloy	Black	Black Zinc Cobalt Alloy	Unshielded	Automotive, Industrial	2	Metal	Aluminum Alloy, Black Zinc Cobalt	Silver	Free Hanging (In-Line)	Aluminum Alloy
Harwin Inc. C90-3101F10SL-4P	-55 °C	125 °C	500 VAC, 700 VDC	Backshell, Cable Clamp	Keyed	13 A	Synthetic Rubber	7.14 mm	0.281 in	IP67 - Dust Tight, Waterproof	10SL-4	Male Pins, Receptacle	Copper Alloy	Black	Black Zinc Cobalt Alloy	Unshielded	Automotive, Industrial	2	Metal	Aluminum Alloy, Black Zinc Cobalt	Silver	Free Hanging (In-Line)	Aluminum Alloy
Harwin Inc. C90-3101F14S-6P	-55 °C	125 °C	200 VAC, 250 VDC	Backshell, Cable Clamp	Keyed	13 A	Synthetic Rubber			IP67 - Dust Tight, Waterproof	14S-6	Male Pins, Receptacle	Copper Alloy	Black	Black Zinc Cobalt Alloy	Unshielded	Automotive, Industrial	6	Metal	Aluminum Alloy, Black Zinc Cobalt	Silver	Free Hanging (In-Line)	Aluminum Alloy	10.3 mm	0.406 in
Harwin Inc. C90-3101F10SL-3S	-55 °C	125 °C	500 VAC, 700 VDC	Backshell, Cable Clamp	Keyed	13 A	Synthetic Rubber	7.14 mm	0.281 in	IP67 - Dust Tight, Waterproof	10SL-3	Receptacle, Female Sockets	Copper Alloy	Black	Black Zinc Cobalt Alloy	Unshielded	Automotive, Industrial	3	Metal	Aluminum Alloy, Black Zinc Cobalt	Silver	Free Hanging (In-Line)	Aluminum Alloy
Harwin Inc. C90-3101F14S-2P	-55 °C	125 °C	200 VAC, 250 VDC	Backshell, Cable Clamp	Keyed	13 A	Synthetic Rubber			IP67 - Dust Tight, Waterproof	14S-2	Male Pins, Receptacle	Copper Alloy	Black	Black Zinc Cobalt Alloy	Unshielded	Automotive, Industrial	4	Metal	Aluminum Alloy, Black Zinc Cobalt	Silver	Free Hanging (In-Line)	Aluminum Alloy	10.3 mm	0.406 in
Harwin Inc. C90-3101F14S-2S	-55 °C	125 °C	200 VAC, 250 VDC	Backshell, Cable Clamp	Keyed	13 A	Synthetic Rubber			IP67 - Dust Tight, Waterproof	14S-2	Receptacle, Female Sockets	Copper Alloy	Black	Black Zinc Cobalt Alloy	Unshielded	Automotive, Industrial	4	Metal	Aluminum Alloy, Black Zinc Cobalt	Silver	Free Hanging (In-Line)	Aluminum Alloy	10.3 mm	0.406 in
Harwin Inc. C90-3101F10SL-3P	-55 °C	125 °C	500 VAC, 700 VDC	Backshell, Cable Clamp	Keyed	13 A	Synthetic Rubber	7.14 mm	0.281 in	IP67 - Dust Tight, Waterproof	10SL-3	Male Pins, Receptacle	Copper Alloy	Black	Black Zinc Cobalt Alloy	Unshielded	Automotive, Industrial	3	Metal	Aluminum Alloy, Black Zinc Cobalt	Silver	Free Hanging (In-Line)	Aluminum Alloy
Harwin Inc. C90-3101F14S-6S	-55 °C	125 °C	200 VAC, 250 VDC	Backshell, Cable Clamp	Keyed	13 A	Synthetic Rubber			IP67 - Dust Tight, Waterproof	14S-6	Receptacle, Female Sockets	Copper Alloy	Black	Black Zinc Cobalt Alloy	Unshielded	Automotive, Industrial	6	Metal	Aluminum Alloy, Black Zinc Cobalt	Silver	Free Hanging (In-Line)	Aluminum Alloy	10.3 mm	0.406 in
