810-22-005-40-001101
ActiveMill-Max Manufacturing Corp.

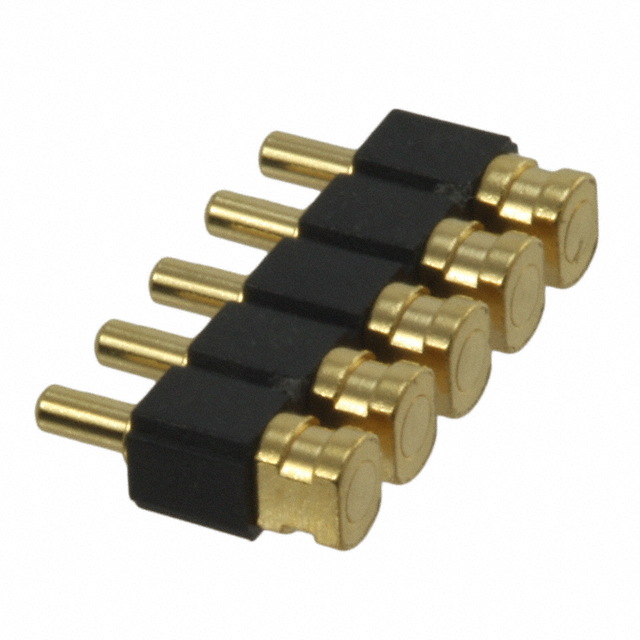

CONN SPRING PISTON 5POS R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
810-22-005-40-001101
ActiveMill-Max Manufacturing Corp.
CONN SPRING PISTON 5POS R/A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 810-22-005-40-001101 |
|---|---|
| Connector Type | Piston |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Material | Copper Alloy |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.29 | |
| 10 | $ 4.82 | |||
| 25 | $ 4.35 | |||
| 50 | $ 4.03 | |||
| 100 | $ 3.74 | |||
| 250 | $ 3.40 | |||
| 500 | $ 3.19 | |||
Description
General part information
810-22 Series
5 Position Spring Piston Connector Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
