810-22-005-40-005191
ActiveMill-Max Manufacturing Corp.

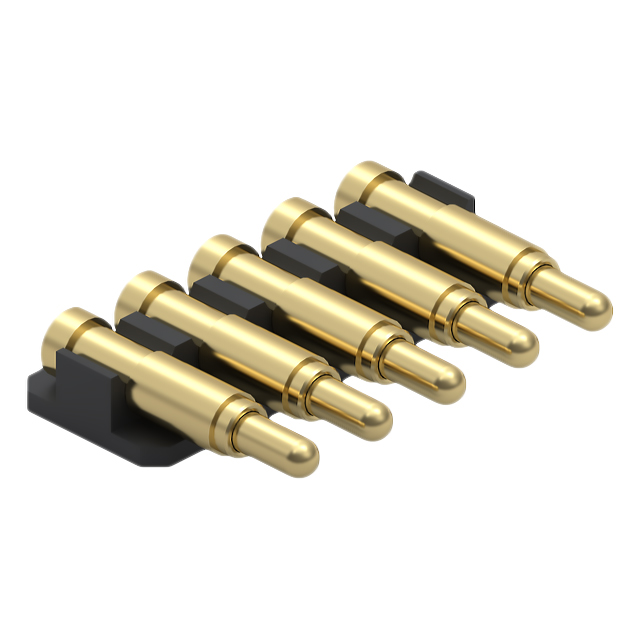

CONN SPRING PISTON 5POS R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
810-22-005-40-005191
ActiveMill-Max Manufacturing Corp.
CONN SPRING PISTON 5POS R/A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 810-22-005-40-005191 |
|---|---|
| Connector Type | Piston |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Material | Copper Alloy |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.06 | |
| 10 | $ 4.30 | |||
| 100 | $ 3.66 | |||
| 500 | $ 3.41 | |||
| Digi-Reel® | 1 | $ 5.06 | ||
| 10 | $ 4.30 | |||
| 100 | $ 3.66 | |||
| 500 | $ 3.41 | |||
| Tape & Reel (TR) | 1450 | $ 3.03 | ||
| 2900 | $ 2.88 | |||
Description
General part information
810-22 Series
5 Position Spring Piston Connector Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
