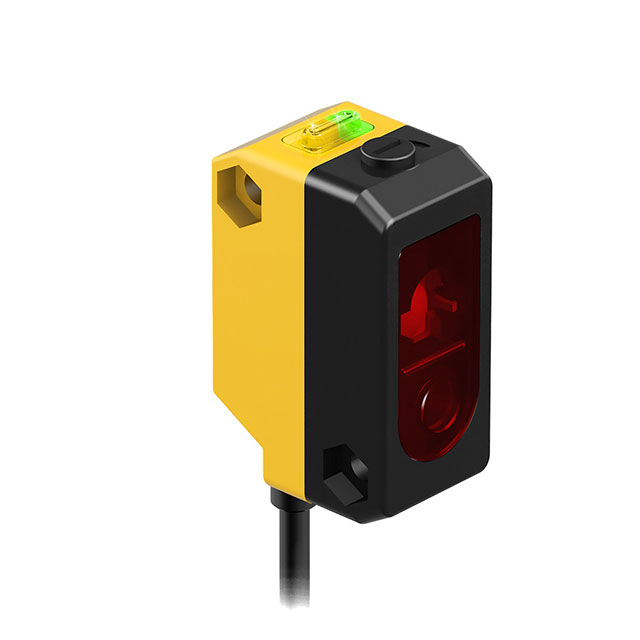

QS18VN6LAFQ5

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18 SERIES, 1 MM, NPN, 10 V TO 30 V, QUICK DISCONNECT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

QS18VN6LAFQ5

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18 SERIES, 1 MM, NPN, 10 V TO 30 V, QUICK DISCONNECT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS18VN6LAFQ5

Adjustment Type	Adjustable
Connection Method	Connector
Ingress Protection	NEMA 6P, IP67
Light Source	RED (650nm)
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN - Dark-ON/Light-ON
Response Time	700 µs
Sensing Distance	5.906 in
Sensing Distance	15 cm
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

QS18VN6 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Adjustment Type	Sensing Method	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Cable Length	Cable Length	Response Time	Light Source	Light Source	Sensing Distance	Sensing Distance	Output Configuration	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
BANNER ENGINEERING QS18VN6AF300 W/30	55 °C	-20 C	NEMA 6P IEC IP67	Adjustable	Background Suppression	Cable with Connector	30 VDC	10 VDC	354.33 in	9 m	2.5 ms	Red	640 nm	11.811 in	300 mm
BANNER ENGINEERING QS18VN6FF100Q8	70 °C	-20 C	IP67 NEMA 6P		Background Suppression	Connector	30 VDC	10 VDC			850 µs	Red LED		3.937 in	100 mm	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6FF100	70 °C	-20 C	NEMA 6P IEC IP67		Background Suppression	Cable	30 VDC	10 VDC	78.74 in	2 m	850 µs	LED		3.937 in	100 mm	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6CV45Q5	70 °C	-20 C	IP67		Convergent	Connector	30 VDC	10 VDC			600 µs	Red	630 nm	1.693 in	43 mm
BANNER ENGINEERING QS18VN6AF100	70 °C	-20 C	IP67 NEMA 6P	Adjustable	Background Suppression	Cable	30 VDC	10 VDC	78.74 in	2 m	700 µs	Red (660nm)		3.937 in	100 mm	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6LAFQ5			IP67 NEMA 6P	Adjustable	Background Suppression	Connector	30 VDC	10 VDC			700 µs	RED (650nm)		5.906 in	15 cm	NPN - Dark-ON/Light-ON	-10 °C	50 °C
BANNER ENGINEERING QS18VN6LAF250Q			NEMA 6P IEC IP67	Adjustable	Background Suppression	Cable	30 VDC	10 VDC	78.74 in	2 m	700 µs	Red	658 nm				-10 °C	50 °C
BANNER ENGINEERING QS18VN6DQ8	70 °C	-20 C	NEMA 6P IEC IP67		Diffuse	Connector	30 VDC	10 VDC			600 µs	LED		17.717 in	450 mm	NPN - Light-ON
BANNER ENGINEERING QS18VN6LVQ8	70 °C	-20 C	NEMA 6P IEC IP67		NonPolarized Retroreflective	Connector	30 VDC	10 VDC			600 µs	Red LED		255.906 in	6.5 m	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6LPQ8	70 °C	-20 C	NEMA 6P IEC IP67		Polarized Retroreflective	Connector	30 VDC	10 VDC			600 µs	Red LED		137.795 in	350 cm	NPN - Dark-ON/Light-ON

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 233.00
Newark	Each	1	$ 252.52
		3	$ 247.80
		5	$ 240.72

Description

General part information

QS18VN6 Series

The QS18 series miniature self-contained Photoelectric Sensor in universal housing. Features 10 to 30VDC operation, with complementary (SPDT) NPN or PNP outputs, depending on model.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Drawing EN

Datasheet
