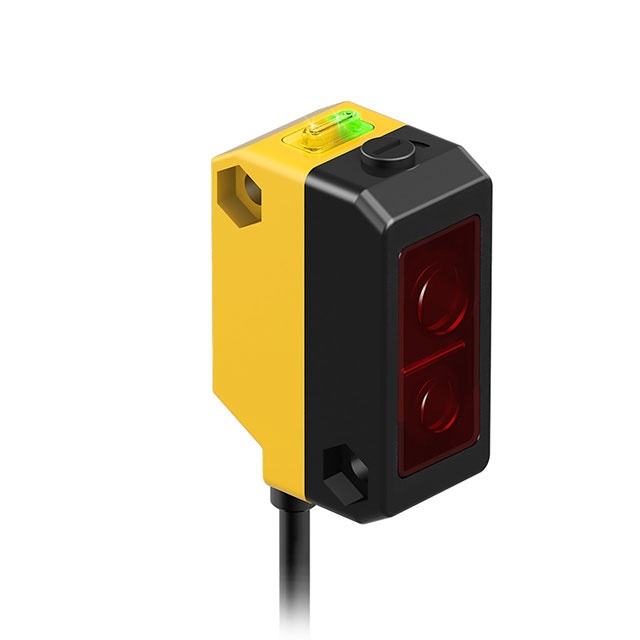

QS18VN6AF100

Active

BANNER ENGINEERING

PHOTO SEN 20-100MM NPN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

QS18VN6AF100

Active

BANNER ENGINEERING

PHOTO SEN 20-100MM NPN

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS18VN6AF100

Adjustment Type	Adjustable
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IP67
Light Source	Red (660nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN - Dark-ON/Light-ON
Response Time	700 µs
Sensing Distance	3.937 in
Sensing Distance	100 mm
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

QS18VN6 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Adjustment Type	Sensing Method	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Cable Length	Cable Length	Response Time	Light Source	Light Source	Sensing Distance	Sensing Distance	Output Configuration	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
BANNER ENGINEERING QS18VN6AF300 W/30	55 °C	-20 C	NEMA 6P IEC IP67	Adjustable	Background Suppression	Cable with Connector	30 VDC	10 VDC	354.33 in	9 m	2.5 ms	Red	640 nm	11.811 in	300 mm
BANNER ENGINEERING QS18VN6FF100Q8	70 °C	-20 C	IP67 NEMA 6P		Background Suppression	Connector	30 VDC	10 VDC			850 µs	Red LED		3.937 in	100 mm	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6FF100	70 °C	-20 C	NEMA 6P IEC IP67		Background Suppression	Cable	30 VDC	10 VDC	78.74 in	2 m	850 µs	LED		3.937 in	100 mm	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6CV45Q5	70 °C	-20 C	IP67		Convergent	Connector	30 VDC	10 VDC			600 µs	Red	630 nm	1.693 in	43 mm
BANNER ENGINEERING QS18VN6AF100	70 °C	-20 C	IP67 NEMA 6P	Adjustable	Background Suppression	Cable	30 VDC	10 VDC	78.74 in	2 m	700 µs	Red (660nm)		3.937 in	100 mm	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6LAFQ5			IP67 NEMA 6P	Adjustable	Background Suppression	Connector	30 VDC	10 VDC			700 µs	RED (650nm)		5.906 in	15 cm	NPN - Dark-ON/Light-ON	-10 °C	50 °C
BANNER ENGINEERING QS18VN6LAF250Q			NEMA 6P IEC IP67	Adjustable	Background Suppression	Cable	30 VDC	10 VDC	78.74 in	2 m	700 µs	Red	658 nm				-10 °C	50 °C
BANNER ENGINEERING QS18VN6DQ8	70 °C	-20 C	NEMA 6P IEC IP67		Diffuse	Connector	30 VDC	10 VDC			600 µs	LED		17.717 in	450 mm	NPN - Light-ON
BANNER ENGINEERING QS18VN6LVQ8	70 °C	-20 C	NEMA 6P IEC IP67		NonPolarized Retroreflective	Connector	30 VDC	10 VDC			600 µs	Red LED		255.906 in	6.5 m	NPN - Dark-ON/Light-ON
BANNER ENGINEERING QS18VN6LPQ8	70 °C	-20 C	NEMA 6P IEC IP67		Polarized Retroreflective	Connector	30 VDC	10 VDC			600 µs	Red LED		137.795 in	350 cm	NPN - Dark-ON/Light-ON

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 116.00

Description

General part information

QS18VN6 Series

Background Suppression Optical Sensor 3.937" (100mm) NPN - Dark-ON/Light-ON
