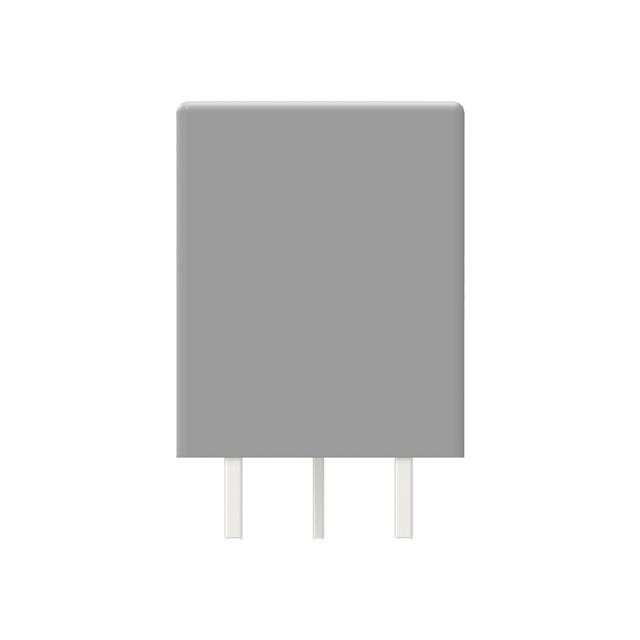

1-1415020-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 6V
Deep-Dive with AI
Search across all available documentation for this part.
1-1415020-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 6V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1415020-1 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 109.1 mA |
| Coil Insulation | Class F |
| Coil Resistance | 55 Ohms |
| Coil Type | Latching, Single Coil |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 4.2 VDC |
| Must Release Voltage | 3.3 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.14 | |
| 10 | $ 7.99 | |||
| 25 | $ 7.57 | |||
| 50 | $ 7.27 | |||
| 100 | $ 6.98 | |||
| 250 | $ 6.61 | |||
| 500 | $ 6.35 | |||
| 1000 | $ 6.09 | |||
Description
General part information
RTE24F Series
General Purpose Relay DPDT (2 Form C) 6VDC Coil Through Hole
